Conveyor Belt Drum Roller Suits Your System

Conveyor systems are integral to modern material handling, with conveyor belt drum rollers playing a pivotal role in their operation. These rollers are crucial for supporting and moving belts that carry diverse materials across various industries. In the market, you will find an array of conveyor belt drum rollers designed to meet different environmental and operational demands. From lightweight options suitable for small goods to heavy-duty rollers capable of handling large volumes and weights, the variety ensures that every system can achieve optimum efficiency and functionality. This section explores the essential types and functions of conveyor belt drum rollers, highlighting their importance in enhancing conveyor system performance.

What are Conveyor Belt Drum Rollers

Conveyor belt drum rollers are crucial components in the operation of conveyor systems, Large diameter, thick-walled conveyor belt drum rollers serve idler drums, featuring fixed shafts, and machined surfaces for belt protection.facilitating the smooth and efficient movement of materials. These rollers help support and drive the conveyor belt, reducing friction and wear. Let’s delve deeper into their functions and distinctions.

Definition and Primary Functions

A conveyor belt drum roller is a cylindrical component that drives or supports the conveyor belt. These rollers are typically positioned at the ends of the conveyor system, where they provide the necessary tension and traction for the belt’s operation. Here are the nine primary functions of conveyor belt drum rollers:

1. Driving the Conveyor Belt: Drum rollers are often motorized to provide the necessary rotational force to move the conveyor belt.
2. Supporting the Belt: These rollers help maintain the structural integrity of the belt, ensuring it remains flat and aligned.
3. Reducing Belt Slippage: By providing adequate friction, drum rollers help prevent the belt from slipping on the track.
4. Adjusting Tension: Conveyor belt drum rollers can be adjusted to increase or decrease the tension on the belt, crucial for efficient operation.
5. Guiding the Belt: Properly aligned rollers help guide the conveyor belt, preventing it from drifting sideways.
6. Distributing Load Evenly: Rollers ensure that the material load is evenly distributed across the width of the belt.
7. Absorbing Shocks: During material loading, drum rollers absorb impacts, protecting the belt and the conveyor framework.
8. Facilitating Accumulation: In conveyor belt systems designed for accumulation, drum rollers can be modified to allow the belt to stop and start without affecting the movement of materials.
9. Enhancing Longevity: By minimizing wear and tear, well-maintained drum rollers extend the lifespan of the entire conveyor system.

Distinctions Between Crowned and Parallel Drum Rollers

There are primarily two types of drum rollers used in conveyor belts: crowned drum rollers and parallel drum rollers. Each type serves a unique purpose and is suitable for different operational needs.

Crowned Drum Rollers

Crowned drum rollers have a slightly higher diameter in the middle than at the ends. This unique design helps to keep the conveyor belt centered and prevents it from drifting off to the sides. The subtle curvature of the roller’s surface creates varying travel speeds for the belt edges, guiding it back to the center if it begins to move sideways.

Parallel Drum Rollers

In contrast, parallel drum rollers have a uniform diameter across their entire length. This design is suitable for applications where the conveyor belt alignment is controlled externally or where lateral movement is not a concern. Parallel drum rollers provide consistent support across the belt’s width, ensuring stable and uniform motion.

Comparison Table

To further distinguish between these two types of conveyor belt drum rollers, the following table provides a clear comparison of their characteristics:

Feature	Crowned Drum Roller	Parallel Drum Roller
Diameter Variation	Higher in the middle	Uniform across the length
Belt Centering	Automatically centers the belt	Requires external alignment
Application	Useful in applications where belt alignment is crucial	Ideal for stable, straight-line operations
Maintenance	May require more precise installation	Simpler to install and maintain

Understanding the differences between these types of conveyor belt drum rollers is crucial for selecting the right roller for specific conveyor belt applications. By choosing the appropriate type, you can enhance the efficiency and longevity of your conveyor system.

Features of Conveyor Belt Drum Rollers

Engineering and Design Enhancements

The engineering behind conveyor belt drum rollers involves precise design considerations to enhance their functionality and durability. One key feature is the availability of machined shaft ends, which provide robust connections and minimize wear and tear. Additionally, manufacturers offer customizations in tube diameters, adapting to specific conveyor needs. Whether it’s adjusting the diameter for a small-scale operation or increasing it for heavy-duty applications, these modifications ensure that the rollers can handle the required loads efficiently.

Bearing Types and Advantages

In the realm of conveyor belt drum rollers, the choice of bearings plays a significant role in the system’s overall performance. Many rollers feature sealed cartridge bearings, which are preferred for their ability to protect against dust, dirt, and other contaminants. This type of bearing is crucial for maintaining the longevity and efficiency of the roller, reducing maintenance needs and downtime. Sealed bearings are particularly beneficial in environments where fine particles and debris are prevalent, ensuring that the conveyor system remains operational under varying conditions.

The features and specifications of conveyor belt drum rollers are designed to meet diverse industrial needs, enhancing the reliability and efficiency of conveyor systems worldwide. Each component, from the tube dimensions to the types of bearings used, is selected with precision to ensure that every conveyor belt drum roller offers the best possible performance in its specific application.

Specifications of Conveyor Belt Drum Rollers

Detailed Specifications

Conveyor belt drum rollers are designed to support the seamless operation of conveyor belts, and their specifications are crucial for optimal performance. These rollers come in various tube sizes and spindle options to accommodate different operational needs. For instance, standard tube dimensions include diameters such as 114.3mm with a thickness of 6.3mm, 168.33mm with a thickness of 8mm, and 219.1mm with a thickness of 8.8mm. Available spindle options can range from ø25mm to ø40mm, allowing for a tailored approach to different weight capacities and operational speeds.

When specifying conveyor belt drum rollers, it’s essential to consider various parameters to ensure they meet operational requirements. Below are typical specifications and considerations for conveyor belt drum rollers:

Drum Shell

• Material: Common materials include mild steel, stainless steel, and aluminum. The choice depends on the environment and load conditions.
• Diameter: Usually ranges from 200 mm to 1200 mm or more, depending on the application.
• Length: Matches the width of the conveyor belt, typically ranging from 300 mm to 2400 mm or more.
• Surface Finish: Options include smooth, knurled, or coated with rubber lagging for increased grip.

End Discs

• Material: Typically the same as the drum shell, usually steel.
• Thickness: Varies based on drum diameter and load conditions, commonly between 10 mm to 30 mm.

Shaft

• Material: High-strength alloy steel is common to handle high loads and reduce deflection.
• Diameter: Usually ranges from 40 mm to 200 mm, depending on the load.
• Length: Extends beyond the drum to accommodate bearing housings and coupling mechanisms.

Bearings

• Type: Ball bearings or roller bearings are commonly used.
• Load Capacity: Must match the expected load of the conveyor system. Bearings are rated by dynamic and static load capacities.

Lagging

• Material: Rubber, ceramic, or a combination, depending on the required friction and wear resistance.
• Thickness: Typically ranges from 6 mm to 25 mm.
• Pattern: Options include plain, diamond, or herringbone patterns to enhance traction and belt tracking.

Mounting and Alignment

• Mounting: Flanged, foot-mounted, or shaft-mounted designs.
• Alignment: Precision-machined for proper alignment to prevent belt slippage and uneven wear.

Environmental Considerations

• Temperature Range: Materials and designs that can withstand the operational temperature range, often from -20°C to +70°C or higher for special applications.
• Corrosion Resistance: Stainless steel or coated materials for corrosive environments.

Example Specifications

GRAM Steel Conveyor Rollers

• Diameter: 300 mm to 1200 mm
• Length: Up to 2400 mm
• Material: Steel with optional rubber lagging
• Bearings: High-capacity ball or roller bearings
• Surface: Smooth or patterned rubber lagging

GRAM Ceramic Conveyor Rollers

• Diameter: 250 mm to 1000 mm
• Length: Matches conveyor width, up to 2200 mm
• Material: Mild steel or stainless steel with optional ceramic lagging
• Bearings: Sealed for life, suitable for high-load applications
• Coating: Various options including diamond, herringbone patterns

GRAM Heavy-duty Conveyor Rollers

• Diameter: 320 mm to 800 mm
• Length: Up to 2000 mm
• Material: High-strength steel
• Bearings: Heavy-duty roller bearings
• Lagging: Rubber or ceramic, up to 20 mm thick

These specifications provide a comprehensive overview of the considerations and parameters involved in selecting and designing conveyor belt drum rollers for mining and industrial applications.

Design of Conveyor Belt Drum Roller

The design of a conveyor belt drum roller involves several key components and considerations to ensure efficient and reliable operation. Here’s an overview of the design process:

Key Components of a Conveyor Belt Drum Roller

Drum Shell:

• Material: Typically made from steel or aluminum for strength and durability.
• Diameter: Determined based on the belt width and the load requirements.
• Surface Finish: Can be smooth or coated with rubber to increase traction and reduce belt slippage.

End Discs:

• Material: Usually steel, welded to the drum shell.
• Function: Provide structural support and house the bearing assemblies.

Shaft:

• Material: High-strength steel to support the load and reduce deflection.
• Design: Precision-machined to fit into the bearing assemblies and to accommodate the coupling for motorized rollers.

Bearings:

• Type: Typically anti-friction bearings (ball or roller bearings).
• Mounting: Can be mounted internally or externally on the end discs.

Lagging:

• Material: Rubber or ceramic coating on the drum surface.
• Purpose: Increases friction between the drum and the conveyor belt, improving traction and reducing slippage.

Design Considerations

Load Requirements:

• Static and Dynamic Loads: Ensure the drum can handle both the weight of the conveyor belt and the materials being transported.

Belt Speed:

• Operational Speed: The drum design must accommodate the operational speed of the conveyor belt, considering factors like centrifugal force.

Environmental Conditions:

• Temperature and Moisture: Materials and coatings must be chosen to withstand the operational environment, including temperature extremes and exposure to moisture or chemicals.

Alignment and Balance:

• Precision Manufacturing: Ensures the drum is properly balanced to avoid vibration and uneven wear on the belt.

Maintenance and Accessibility:

• Ease of Maintenance: Design should allow easy access for maintenance and replacement of bearings and other components.

Design Process

Requirement Analysis:

• Gather data on the operational requirements, including load, speed, and environmental conditions.

Material Selection:

• Choose appropriate materials for the drum shell, shaft, and bearings based on the operational requirements.

CAD Modelling:

• Create a detailed 3D model of the drum roller, including all components and their interactions.

Finite Element Analysis (FEA):

• Conduct stress analysis to ensure the design can withstand operational loads without failure.

Prototyping and Testing:

• Build a prototype and conduct real-world testing to validate the design and make any necessary adjustments.

Production:

• Once validated, proceed with the production of the drum rollers, ensuring quality control at each step.

Example Sources

• Fenner Dunlop: A leading manufacturer providing detailed specifications and design considerations for conveyor drum rollers.
• ContiTech: Offers insights into material selection and design optimization for conveyor components.
• CEMA (Conveyor Equipment Manufacturers Association): Provides standards and best practices for conveyor design, including drum rollers.

By considering these components and design principles, you can ensure the efficient and reliable operation of conveyor belt drum rollers in mining and other industrial applications.

Benefits of High-Quality Conveyor Belt Drum Roller

High-quality conveyor belt drum rollers significantly enhance the efficiency and safety of conveyor systems. Their design and construction are pivotal in ensuring that conveyor systems operate smoothly under various industrial conditions. Here, we explore the impacts of these components and how specific features like crowned or parallel outer diameters contribute to system performance.

Impact on Efficiency and Safety

Investing in high-quality conveyor belt drum rollers can lead to numerous benefits that impact both the efficiency and safety of conveyor systems. Below are eight key impacts:

1. Reduced Downtime: High-quality drum rollers are less prone to failures, thus reducing downtime needed for maintenance and repairs.
2. Increased Efficiency: Better quality rollers provide smoother operations, minimizing the energy consumed by the conveyor system and enhancing throughput.
3. Longer Lifespan: These rollers are typically made from more durable materials, which withstand wear and tear better, extending the lifespan of both the rollers and the conveyor belt.
4. Enhanced Safety: Quality drum rollers are designed to adhere strictly to safety standards, reducing the risk of accidents due to mechanical failures.
5. Lower Maintenance Costs: With fewer breakdowns and less wear, the maintenance costs over the life of the conveyor system are significantly reduced.
6. Improved Load Handling: High-quality rollers ensure consistent and stable movement, which is crucial for transporting sensitive or heavy loads without causing damage.
7. Noise Reduction: Better designed and constructed rollers operate more quietly, which is essential for maintaining a more comfortable working environment.
8. Decreased Belt Misalignment: Precision-engineered drum rollers maintain better belt alignment, thereby preventing costly belt damage and material spillage.

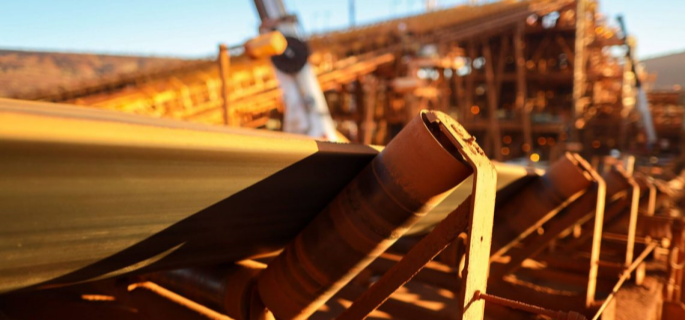

Features Aiding in Belt Tracking and Stability

The choice between crowned and parallel drum rollers plays a significant role in belt tracking and the overall stability of a conveyor system:

Crowned Drum Rollers:

1. Self-Aligning Capability: The unique design of crowned rollers, featuring a higher center diameter, naturally guides the conveyor belt towards the center, ensuring better tracking and reducing the risk of belt slippage off the roller.
2. Optimal for Varying Loads: This type is particularly beneficial in applications where the load on the conveyor varies, as the crown helps maintain belt alignment under changing conditions.

Parallel Drum Rollers:

1. Uniform Surface Contact: Parallel rollers provide a consistent contact surface along the belt’s width, which is critical for handling heavy, uniform loads.
2. Stable Operation: The uniform diameter across these rollers ensures that the belt does not wobble or sway, which is vital for maintaining stability and preventing material spillage.

The integration of these features into a conveyor belt drum roller design ensures optimal performance and longevity of the conveyor system. Whether your operation requires the flexibility of crowned rollers or the stability of parallel rollers, selecting high-quality components is key to enhancing productivity and safety in industrial settings.

Purchasing Conveyor Belt Drum Rollers

When it comes to optimizing the performance of conveyor systems, selecting the right conveyor belt drum rollers is crucial. The choice of drum rollers affects everything from the system’s efficiency and maintenance requirements to its longevity and safety. Below are essential tips and factors to consider when purchasing conveyor belt drum rollers, along with insights into supplier options and customization.

Tips on Choosing the Right Conveyor Belt Drum Roller

Selecting the appropriate conveyor belt drum roller for various industrial applications involves understanding the specific needs of your system. Here are twelve tips to guide you in making the right choice:

1. Understand the Load Requirements: Consider the weight and type of materials the conveyor will carry. Heavier loads might require more robust drum rollers.
2. Know Your Belt Type: The material and design of your conveyor belt determine the compatibility with certain drum rollers.
3. Consider the Operating Environment: Environmental factors such as exposure to chemicals, temperature extremes, and moisture can dictate the material choice for the rollers.
4. Assess Speed Requirements: The speed of the conveyor belt can influence the type of roller needed, as high-speed applications may require specialized bearings.
5. Determine Roller Diameter: The diameter of the rollers must be compatible with the conveyor setup to ensure proper belt support and minimize wear.
6. Select Roller Material: Steel, aluminum, and plastic rollers offer different benefits and limitations; choose based on durability, weight, and cost considerations.
7. Evaluate Bearing Type: Bearings play a critical role in the lifespan and efficiency of drum rollers. Options include sealed and regreasable bearings.
8. Check for Customization Options: Some applications may require custom-sized or -shaped rollers, so it’s important to check if suppliers offer customization.
9. Consider Manufacturer Reputation: Choose suppliers known for quality and reliability.
10. Inquire About Maintenance Needs: Understand the maintenance that will be required to keep the rollers in optimal condition.
11. Look for Safety Features: Features that enhance safety, such as noise-reduction designs, are important.
12. Factor in Cost Efficiency: Evaluate the total cost of ownership, including initial costs, maintenance expenses, and potential downtime.

Get durable conveyor rollers for reliable performance.

Conveyor Roller Suppliers and Custom Options

When purchasing conveyor belt drum rollers, you will encounter a range of suppliers offering various products and services. Here are six notable suppliers in the industry:

1. Interroll: Known for high-quality, durable rollers suitable for various applications.
2. Precision Pulley & Idler: Offers a wide range of custom and standard rollers.
3. Rexnord: Provides a comprehensive line of conveyor components, including specialized drum rollers.
4. Fenner Drives: Known for innovative material handling solutions.
5. Martin Sprocket & Gear: Offers custom fabrication of rollers to meet specific industrial needs.
6. Conveyor Components Co.: Specializes in a broad spectrum of conveyor accessories and rollers.

Many of these suppliers offer custom conveyor rollers, enabling you to tailor components specifically to your system’s requirements and operational challenges.

Key Factors to Consider When Purchasing

When deciding on the right conveyor belt drum rollers, here are ten key factors to keep in mind:

1. Price: Ensure the cost aligns with your budget and reflects the quality and longevity expected.
2. Durability: Choose rollers that can withstand your operating conditions to reduce replacements.
3. Compatibility: Rollers must be compatible with existing conveyor systems to ensure efficient operation.
4. Material: The construction material impacts the roller’s suitability for different environments and loads.
5. Load Capacity: Match the roller’s load capacity with the demands of your system.
6. Speed Capability: Verify that the rollers can handle the operational speed of your conveyor.
7. Ease of Installation: Consider how easy it is to install the rollers, which can affect downtime and labor costs.
8. Maintenance Requirements: Look for rollers that are easy to maintain and have accessible replacement parts.
9. Supplier Reliability: Choose suppliers with good service records and availability of parts.
10. Warranty and Support: Check for warranties and customer support services to protect your investment.

By carefully considering these factors, you can ensure that you select the best conveyor belt drum rollers for your industrial needs, enhancing system performance and reliability.

Additional Components and Accessories for Conveyor Belt Drum Rollers

Overview of Related Conveyor Parts

Alongside the critical conveyor belt drum rollers, various other components are essential for the assembly and maintenance of a complete conveyor system. These include roller conveyor parts, which comprise assemblies like brackets, frames, and guide rails that support the rollers. Additionally, dyno rollers, which are specifically designed for dynamic and heavy-duty applications, play a vital role in industries requiring high-speed and high-load capacities. Industrial rollers also form an integral part of the system, tailored for specific tasks ranging from lightweight material handling to processing heavy items, ensuring versatility across different sectors.

Availability of Spare Parts and Aftermarket Services

Maintaining the efficiency of conveyor systems often hinges on the timely replacement and availability of spare parts. For conveyor belt drum rollers and associated components, the market offers a wide range of aftermarket services and spare parts. Suppliers and manufacturers provide everything from individual roller parts to comprehensive upgrade kits, allowing for system enhancements and prolonged service life. The availability of these parts ensures that businesses can minimize downtime, maintain productivity, and extend the lifespan of their equipment. Aftermarket services also include expert consultations, maintenance, and repair services, ensuring that each component of the conveyor system, such as conveyor belt drum rollers, performs optimally and reliably. These services are crucial for businesses looking to maintain continuity, efficiency, and safety in their operations.

Where to Buy and What to Expect in Terms of Cost

When planning to purchase conveyor belt drum rollers, it’s crucial to know where to look and what to expect regarding costs. Understanding these aspects can help streamline the purchasing process and ensure you get the best value for your investment.

Guidance on Where to Find Conveyor Belt Drum Rollers for Sale

There are several avenues where you can find conveyor belt drum rollers for sale, each offering different benefits depending on your needs:

1. Manufacturer Direct Sales: Buying directly from manufacturers is often the best way to ensure you’re getting the exact specifications you need for your conveyor system.
2. Industrial Supply Companies: Companies such as Grainger and McMaster-Carr offer a wide range of conveyor components, including drum rollers.
3. Specialized Conveyor Suppliers: Focused on conveyor systems, these suppliers offer expert advice and a wide range of products tailored to material handling needs.
4. Online Marketplaces: Platforms like Alibaba and Amazon Business can be good sources for both standard and custom rollers.
5. Local Distributors: Working with local distributors can provide the advantage of faster delivery times and lower shipping costs.
6. Trade Shows and Expos: These events provide opportunities to directly interact with manufacturers and view products firsthand before purchasing.
7. Used and Surplus Equipment Sellers: For companies on a budget, purchasing used or surplus drum rollers can reduce costs significantly.
8. Engineering Firms: These firms often have connections with multiple manufacturers and can assist in procuring the right type of drum rollers.
9. E-commerce Platforms: Websites dedicated to industrial parts often have extensive catalogues and competitive pricing.

Overview of Pricing Ranges and Factors Influencing the Cost

The cost of conveyor belt drum rollers can vary widely based on several factors:

1. Material: Rollers made from high-grade materials like reinforced steel or specialized plastics tend to be more expensive but offer better performance and durability.
2. Size and Complexity: Larger and more complex rollers, such as those with integrated sensors or motorized systems, will naturally cost more.
3. Quantity: Purchasing in bulk often allows for discounts.
4. Customization: Custom specifications for non-standard conveyor systems will increase the cost.
5. Supplier: Costs can vary depending on the supplier’s pricing strategy, brand, and the quality of the components they offer.

Prices for standard conveyor belt drum rollers can range from as little as $15 to $20 each for simple designs, to over $200 or more for high-end or specialized models.

Popular Suppliers and E-commerce Platforms

When it comes to reliable suppliers and platforms for purchasing conveyor belt drum rollers, here are seven popular options:

1. Interroll: Renowned for their high-quality rollers and wide range of conveyor components.
2. Rexnord: Offers durable drum rollers designed for various industrial applications.
3. Precision Pulley & Idler: Specializes in providing precisely engineered rollers.
4. McMaster-Carr: Known for its extensive inventory and quick delivery.
5. Grainger: A reliable source for a broad array of industrial supplies, including conveyor components.
6. Amazon Business: Useful for finding a wide range of products with reviews and competitive pricing.
7. Alibaba: Ideal for bulk purchases and custom products, especially for buyers looking to source directly from manufacturers.

By exploring these options, you can find high-quality conveyor belt drum rollers that meet the specific needs of your conveyor system, all while staying within your budget.

FAQs about Conveyor Belt Drum Roller

Last Updated on June 26, 2024 by Jordan Smith
