Common Conveyor Belt Rubber Problems And Solutions

Conveyor belts are integral components of many industrial systems, functioning as the backbone for material handling across sectors like mining, manufacturing, and distribution. These belts are typically made from layers of fabric and rubber that operate under significant mechanical stress and environmental influences. Given their critical role, it is vital to address common conveyor belt rubber problems to maintain operational efficiency and ensure workplace safety. Regular maintenance of the rubber parts not only prolongs the life of the conveyor belt but also prevents costly downtimes and accidents, thereby safeguarding both productivity and personnel.

Conveyor Belt Rubber Parts

Conveyor belt systems are intricate assemblies that consist of numerous components, each playing a crucial role in material transportation. Understanding the basic parts of these systems and how they interact can provide insights into conveyor belt rubber problems, allowing for more effective maintenance and operation.

Basic Components of Conveyor Belt Systems

The primary components of a conveyor belt system include:

1. Belts: The belt itself is the essential part of the conveyor system and the primary surface that carries the materials from one point to another. It is usually made of layers of rubber that can be susceptible to various conveyor belt rubber problems such as abrasion, tears, and wear.
2. Rollers: These cylindrical components support the belt and materials being transported. They are strategically placed along the frame of the conveyor to facilitate smooth belt movement and to provide necessary tension and tracking that keep the belt aligned and stable.
3. Motors: Motors provide the necessary power to drive the conveyor belts. They typically work through a gearbox to optimize the speed of the belt, which is crucial for maintaining the efficiency and longevity of the system.
4. Pulleys: Pulleys are used at the end points of the conveyor system to drive (drive pulley) and track (idler pulley) the belt. The drive pulley is powered by the motor and propels the belt forward, while the idler pulleys provide tension and guidance to keep the belt in line.

How Conveyor Belt Components Work Together

The efficiency of conveyor belt systems lies in the seamless integration of its components. Here’s how these elements work together:

1. Motor Activation: The process begins with the motor, which transfers power to the drive pulley. The motor’s speed and torque are critical factors in how materials are moved. If not configured properly, excessive speed can contribute to conveyor belt rubber problems by increasing wear and tear.
2. Belt Movement: Driven by the motorized pulleys, the belt moves in a continuous loop. It is supported by rollers that reduce friction and manage the load distribution across the belt. This arrangement helps mitigate some conveyor belt rubber problems but requires regular maintenance to ensure there is no misalignment or slippage.
3. Material Handling: Materials are loaded onto the belt at the feed point and transported to the discharge point. The way materials are loaded and their interaction with the belt can affect the prevalence of conveyor belt rubber problems. For example, improper loading can cause misalignment and increase wear on the belt’s surface.
4. Control and Monitoring: Sensors and control systems monitor the operation, checking for speed irregularities, belt alignment, and signs of wear and tear. Early detection of issues allows for timely intervention to prevent escalations that lead to severe conveyor belt rubber problems.

Understanding these dynamics is essential for maintaining the integrity of conveyor belt systems and ensuring their efficient operation. Regular inspections, coupled with a proactive maintenance program, can greatly extend the life of the conveyor belt and reduce downtime caused by conveyor belt rubber problems. This holistic view helps in implementing strategic measures that optimize performance and reduce operational costs.

Common Conveyor Belt Rubber Problems

In the world of material handling, conveyor belts play a pivotal role in the efficient movement of goods. However, these belts, particularly those made of rubber, face various challenges that can affect their performance and longevity. Here, we explore some common conveyor belt rubber problems, their causes, and potential solutions.

Wear and Tear

The durability of conveyor belt rubber is compromised primarily through wear and tear, which occurs due to the continuous operation and varying environmental conditions. This deterioration can manifest in several forms:

1. Abrasion: This is the most common type of wear in conveyor belts. It happens when hard materials, such as loaded aggregates or ores, rub against the belt surface during transport. The friction from this repetitive contact gradually wears down the rubber, leading to a thinner and weaker conveyor belt.
2. Corrosion: Though typically associated with metals, rubber belts can also experience a form of corrosion. Chemical exposure from acidic or alkaline materials being transported can degrade the rubber compounds, altering their physical properties and weakening the belt.
3. Cleavage: This type of wear occurs when the belt is subjected to sharp, heavy impacts that can create cuts or tears. Such damage is particularly prevalent in belts used in mining and quarry operations where sharp-edged rocks can pierce the rubber surface.

Understanding these wear mechanisms is crucial for mitigating the conveyor belt rubber problems and extending the service life of the belts.

Spillage Solutions

Material spillage on the belt surface is another significant issue contributing to conveyor belt rubber problems. Spillage can lead to several operational challenges, including increased maintenance costs and downtime, as well as safety hazards. To address these issues, several spillage solutions are recommended:

1. Skirt Sealing Systems: These systems are installed along the loading zones to contain the material within the edges of the belt. Properly designed skirt seals prevent spillage by creating a tight seal between the conveyor structure and the belt.
2. Proper Loading Techniques: Ensuring that the material is loaded centrally and at controlled speeds can reduce spillage. This involves adjusting the chute and hopper design so that the material falls onto the center of the belt, minimizing the chances of it bouncing off to the sides.
3. Impact Beds: Installing impact beds beneath the loading zone helps absorb the shock and distribute the load uniformly across the belt width, which reduces material bounce and spillage.
4. Belt Cleaning Systems: Primary and secondary cleaners scrape off adherent material from the belt. This not only prevents material from falling off at various points along the conveyor but also reduces the abrasive wear from rough materials rubbing against the belt.
5. Correct Conveyor Design: A well-designed conveyor will have features such as adequate belt width and trough depth to handle the material load without overflow.
6. Regular Maintenance: Routine conveyor belt inspections and timely repair of the belt and accessories prevent small issues from becoming bigger problems.
7. Training and Education: Operators should be trained on the optimal operation of conveyors and the early detection of issues that could lead to spillage.
8. Use of High-Quality Materials: Durable and specially designed rubber materials can resist the common problems that lead to spillage and wear.

Addressing these conveyor belt rubber problems through proper maintenance strategies, usage of high-quality materials, and implementing robust spillage solutions can greatly enhance the operational efficiency and safety of conveyor belt systems.

7 Conveyor Belt Rubber Problems And Solutions

Conveyor belt rubber problems: Belt running erratically due to Slippage，Mistracking，Material Spillage，Wear and Tear，Breaking，Corrosion，Delamination.

1. Belt Slippage

Problem: The conveyor belt slips on the drive pulley, causing inefficient operation and potential damage to the system.

Causes:

• Insufficient Tension: The belt is too loose, reducing friction with the drive pulley.
• Worn-out Pulleys: Smooth or worn pulley surfaces decrease grip.
• Incorrect Belt Selection: Using a belt not suitable for the load or conditions.

Solutions:

• Adjust and Maintain Proper Belt Tension: Regularly check and adjust the tension to the manufacturer’s recommended settings.
• Inspect and Replace Worn-out Pulleys: Routinely inspect pulleys for wear and replace them when necessary to maintain proper grip.
• Ensure Correct Belt Selection: Choose belts appropriate for the load, environment, and application. Consulting with the manufacturer can help select the right belt.

2. Belt Mistracking

Problem: The conveyor belt veers off its intended path, causing spillage, increased wear, and potential damage.

Causes:

• Misalignment of Pulleys and Idlers: Incorrectly aligned components cause the belt to run off-center.
• Material Buildup: Debris accumulation on pulleys and idlers affects alignment.
• Damaged Belt Edges: Tears or frayed edges lead to uneven tracking.

Solutions:

• Correct Alignment: Regularly check and adjust the alignment of pulleys and idlers to ensure the belt runs true.
• Clean Material Buildup: Implement a regular cleaning schedule to remove debris from pulleys and idlers.
• Repair or Replace Damaged Edges: Address any damage promptly by repairing or replacing sections of the belt to prevent further tracking issues.

3. Material Spillage

Problem: Material falls off the sides of the conveyor belt, causing loss of product and potential safety hazards.

Causes:

• Overloading: Exceeding the belt’s capacity leads to spillage.
• Improper Sealing: Gaps at the belt edges allow material to escape.
• Inadequate Skirt Boards: Poorly positioned or maintained skirt boards fail to contain the material.

Solutions:

• Avoid Overloading: Operate within the belt’s load limits to prevent spillage.
• Install Proper Sealing Systems: Use side skirts and other sealing methods to contain material on the belt.
• Maintain Skirt Boards: Regularly inspect and adjust skirt boards to ensure they are effective in preventing spillage.

4. Belt Wear and Tear

Problem: The conveyor belt shows signs of abrasion and damage, reducing its lifespan and efficiency.

Causes:

• Handling Abrasive Materials: Rough or sharp materials cause surface wear.
• Lack of Maintenance: Neglecting regular maintenance leads to accelerated wear.

Solutions:

• Use Abrasion-resistant Belts: Choose belts specifically designed to handle abrasive materials.
• Conduct Regular Maintenance: Implement a maintenance schedule to inspect, clean, and repair the belt, addressing wear before it becomes severe.

5. Belt Breaking

Problem: The conveyor belt snaps or breaks, causing downtime and requiring costly repairs.

Causes:

• Excessive Tension: Over-tensioning puts undue stress on the belt.
• Heavy Impact Loads: Sudden heavy loads or impacts can break the belt.
• Inferior Belt Quality: Low-quality belts are more prone to breaking.

Solutions:

• Avoid Excessive Tension: Adjust tension according to manufacturer recommendations to avoid overstressing the belt.
• Install Impact Beds or Cradles: Use impact beds at loading points to absorb the shock of heavy loads and protect the belt.
• Choose High-quality Belts: Invest in belts with adequate tensile strength and durability for the application.

6. Belt Corrosion

Problem: The belt material deteriorates due to exposure to harsh chemicals, reducing its effectiveness and lifespan.

Causes:

• Chemical Exposure: Contact with corrosive substances degrades the belt material.
• Unsuitable Operating Environment: Environments with extreme conditions can cause corrosion.

Solutions:

• Use Chemical-resistant Belts: Select belts with properties that resist chemical degradation.
• Implement Proper Cleaning Procedures: Regularly clean the belt to remove any chemical residues and minimize exposure.

7. Belt Delamination

Problem: Layers of the belt separate from each other, leading to reduced strength and potential failure.

Causes:

• Poor Quality Adhesives: Inferior bonding materials fail under stress.
• Extreme Operational Conditions: High temperatures, moisture, or other extremes weaken adhesive bonds.
• Manufacturing Defects: Faulty manufacturing processes can result in weak bonds.

Solutions:

• Use High-quality Belts and Adhesives: Invest in belts with superior bonding agents designed for the application’s conditions.
• Ensure Suitable Operating Conditions: Maintain the belt within the recommended temperature and moisture levels.
• Regular Inspections: Conduct periodic inspections to identify early signs of delamination and address them before they lead to failure.

By understanding these common problems and implementing the appropriate solutions, you can enhance the performance and longevity of rubber conveyor belts in your operations. Regular maintenance and proactive measures are key to preventing issues and ensuring efficient, reliable conveyor belt performance.

Significant Conveyor Belt Rubber Problems

Misalignment and shifting of conveyor belts are significant conveyor belt rubber problems that can affect the efficiency, safety, and longevity of conveyor systems. These issues not only compromise the structural integrity of the conveyor but also accelerate the wear and deterioration of the rubber material used in the belts. Here, we explore the causes and solutions to these challenges.

Causes of Belt Misalignment

Belt misalignment is one of the critical conveyor belt rubber problems that can arise due to several structural and operational factors:

1. Improper Frame Alignment: If the conveyor frame is not correctly aligned during installation or becomes skewed over time due to operational stresses or settling, it can lead to belt misalignment. This misalignment stresses the rubber, causing uneven wear and potential damage.
2. Uneven Floor Surfaces: Conveyor systems installed on uneven floors can suffer from misalignment as the support structure may tilt or shift, disrupting the belt’s pathway.
3. Worn or Improperly Adjusted Rollers and Pulleys: Rollers and pulleys that are not properly maintained—whether due to wear, damage, or improper alignment—can cause the belt to track incorrectly.
4. Load Distribution: Uneven distribution of the material on the belt can also lead to misalignment. If the load is consistently heavier on one side, the belt tends to drift towards that side.
5. Thermal Expansion or Contraction: Changes in temperature can cause the conveyor components, including the belt, to expand or contract, which may lead to misalignment if not adequately accounted for in the design and maintenance processes.
6. Inadequate Tensioning: Insufficient tension in the conveyor belt can lead to slippage and misalignment. Proper tension is critical for stable belt operation.

Impact of Misaligned Belts on Rubber Wear

Misaligned belts exert uneven pressures on different parts of the belt surface, leading to accelerated wear and tear. The edges of the belt might rub against the conveyor frame or other structures, causing fraying, cuts, and tears in the rubber. This not only necessitates frequent repairs but also shortens the overall lifespan of the belt.

Shifting Problems

Lateral forces are a primary reason for conveyor belts to deviate from their intended path, leading to significant conveyor belt rubber problems. These forces may originate from improper loading techniques, skewed roller alignment, or external forces such as wind or uneven operational loads.

Methods to Correct and Prevent Belt Shifting

1. Alignment Adjustments: Regular checks and adjustments of the conveyor alignment can prevent shifting. This includes making sure all rollers and pulleys are perpendicular to the belt path.
2. Proper Loading Techniques: Ensuring that materials are loaded centrally and uniformly can minimize lateral forces that cause shifting.
3. Side Guides: Installing fixed or adjustable side guides along the edges of the conveyor can help in maintaining the belt’s path.
4. Crowned Pulleys: These pulleys have a slightly raised center. The natural gravitation of the belt towards the highest point can help in maintaining center alignment.
5. Tension Monitoring Systems: Implementing automated tension monitoring can help in maintaining the correct tension across the belt, reducing the likelihood of drifting.
6. Training and Regular Inspections: Educating operators on the importance of even loading and regular maintenance inspections can prevent the onset of conditions that lead to belt shifting.

Addressing the challenges of misalignment and shifting in conveyor belts is crucial for reducing conveyor belt rubber problems. Implementing a strategic maintenance schedule that focuses on proper alignment, load distribution, and regular system checks can significantly enhance the durability and efficiency of conveyor systems.

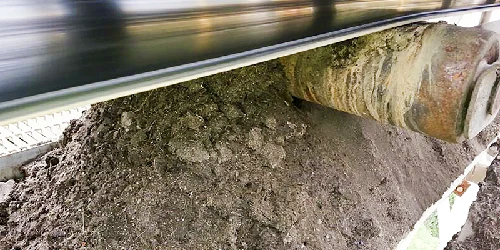

Tensioning Methods for Conveyor Belt Rubber Problems

Proper tensioning of conveyor belts is pivotal in mitigating conveyor belt rubber problems and ensuring optimal performance and longevity. Insufficient or excessive tension can lead to a host of issues, including premature wear, belt slippage, and increased energy consumption. This section discusses the significance of correct tensioning and explores various methods by which tension can be adjusted and maintained in conveyor systems.

Importance of Proper Tensioning

Maintaining the right tension on a conveyor belt is crucial for several reasons:

1. Minimizes Belt Slippage: Proper tension reduces the risk of belt slippage on the drive rollers, which can cause significant wear and tear on both the belt and rollers.
2. Reduces Belt Stretching: Over time, belts can stretch if the tension is too low, leading to misalignment and other mechanical issues that contribute to conveyor belt rubber problems.
3. Enhances Belt Tracking: Correct tension helps to keep the belt aligned with the conveyor’s structural frame, preventing edge wear and damage.
4. Optimizes Drive Motor Efficiency: Appropriate tension ensures that drive motors operate efficiently, without wasting energy compensating for slippage or added resistance.
5. Prevents Material Spillage: A well-tensioned belt provides stable support for the materials being transported, reducing spillage and associated cleanup and maintenance costs.
6. Extends Belt Life: By avoiding excessive wear and tear and mechanical stresses, proper tensioning extends the operational lifespan of the belt.
7. Improves Safety: Properly tensioned belts are less likely to fail catastrophically, enhancing operational safety.
8. Ensures Smooth Operation: A tensioned belt ensures a smooth, consistent operation flow, which is vital for maintaining productivity and efficiency.
9. Avoids Structural Damage: Correct belt tension prevents unnecessary stress on the conveyor framework and other mechanical components, avoiding costly repairs and downtime.

Various Tensioning Methods

Several methods can be employed to achieve and maintain the appropriate tension in a conveyor belt, each with specific benefits and considerations:

1. Screw Tensioning: This method involves manually adjusting screws on the tail pulley to set the belt tension. While simple and inexpensive, it requires frequent checks and adjustments to maintain proper tension.
2. Gravity Tensioning: Utilizes the weight of a counterbalance system to maintain tension. This method automatically adjusts to accommodate changes in load and can help maintain consistent tension without manual intervention.
3. Hydraulic or Pneumatic Tensioning: These systems use hydraulic or pneumatic pressure to maintain tension. They are highly effective for longer conveyors where consistent tension is crucial and can be precisely controlled.
4. Motorized Take-Up: This involves using a motor to adjust the position of the take-up pulley automatically. It’s particularly useful for long conveyor systems and those with varying loads, offering precise control over belt tension.
5. Spring-Loaded Tensioning: In this method, springs are used to apply tension. It is straightforward and effective for smaller, less complex systems.
6. Ratchet Tensioning: This method provides a simple way to increase tension in small increments, which is especially useful in applications requiring very fine adjustments.
7. Manual Jack Tensioning: Uses a mechanical jack to apply tension. This method is typically used during installation or maintenance rather than for ongoing tension adjustments.
8. Electronic Tension Monitoring: Advanced systems monitor tension electronically and automatically adjust it to maintain optimal levels. These systems are ideal for critical applications where consistent belt tension is necessary for high-quality operations.
9. Integrated Smart System Tensioning: These systems integrate sensors and feedback mechanisms to continuously adjust and monitor tension in real-time, optimizing conveyor performance and reducing maintenance needs.
10. Eccentric Roller Adjustment: This method uses rollers mounted on eccentric shafts to adjust the tension. It allows for very precise control over belt tension and is useful in precision applications.

By selecting the appropriate tensioning method, operators can address many conveyor belt rubber problems, enhancing the efficiency, safety, and longevity of the conveyor system. Each method has its own set of advantages and is best chosen based on the specific requirements of the application, including belt length, load variability, and environmental factors.

Maintenance Strategies to Extend Belt Life

Effective maintenance strategies are essential in addressing conveyor belt rubber problems and extending the operational life of conveyor belts. Proper maintenance not only prevents premature wear and tear but also enhances the overall efficiency and safety of the conveyor system. Here, we focus on regular inspections, maintenance, and the strategic use of tracking rollers as key components of a robust maintenance program.

Regular Inspection and Maintenance

Regular inspection and maintenance are pivotal in preventing conveyor belt rubber problems by identifying and addressing issues before they escalate into major failures. Here’s how routine checks play a role and tips for conducting effective inspections:

Role of Routine Checks

1. Early Detection of Issues: Routine checks help in the early detection of signs of rubber deterioration, such as cracks, abrasions, and softening, which can be addressed promptly to prevent further damage.
2. Assessment of Mechanical Components: Inspections also cover mechanical components like rollers, pulleys, and frames, ensuring they are in good condition and correctly aligned to avoid causing damage to the belt.
3. Verification of Proper Tension: During inspections, the tension of the belt is checked to ensure it is optimal, as improper tension is a common cause of conveyor belt rubber problems.

Tips for Conducting Effective Conveyor Belt Inspections

1. Establish a Schedule: Perform regular inspections based on the manufacturer’s recommendations and specific operating conditions.
2. Use a Checklist: Develop a comprehensive checklist that covers all components of the conveyor belt system.
3. Look for Visual Signs of Wear: Check for visible signs of wear and damage on the belt surface and edges.
4. Check for Misalignment: Ensure the belt is running centrally on the pulleys and rollers.
5. Inspect Load Points: Pay special attention to loading and discharge points where the belt can suffer increased wear.
6. Monitor Belt Tension: Regularly check belt tension and adjust it according to the manufacturer’s specifications.
7. Listen for Unusual Noises: Unusual noises can indicate a problem with bearings, rollers, or other moving parts.
8. Record Findings: Maintain a log of inspection results for future reference and trend analysis.
9. Train Maintenance Staff: Ensure that personnel are trained to recognize and address potential issues.
10. Prioritize Safety: Always follow safety protocols during inspections to protect personnel.

Use of Tracking Rollers

Conveyor belt tracking rollers are specifically designed to ensure the conveyor belt remains aligned, thus significantly reducing conveyor belt rubber problems related to misalignment.

How Tracking Rollers Help Maintain Alignment

Tracking rollers adjust the path of the belt as it moves, ensuring it stays centered. This minimizes the stress and wear on the belt edges, which can lead to cracking and fraying if the belt runs off its intended track.

Benefits of Using Tracking Rollers

1. Reduces Edge Wear: By keeping the belt aligned, tracking rollers reduce wear on the belt edges, extending its life.
2. Prevents Spillage: Aligned belts are less likely to experience material spillage, reducing cleanup costs and material loss.
3. Lowers Maintenance Costs: With fewer alignment issues, there is less need for frequent corrective maintenance.
4. Enhances Safety: Properly aligned belts are safer to operate as they are less likely to derail or cause accidents.
5. Improves System Efficiency: A well-aligned belt provides smoother operation and reduces energy consumption due to decreased friction and resistance.
6. Extends Roller and Pulley Life: Tracking rollers also reduce wear on other conveyor components by ensuring smooth operation.
7. Allows for Higher Operational Speeds: Proper alignment allows the conveyor system to operate at optimal speeds, increasing throughput.
8. Reduces Downtime: Minimized maintenance interruptions lead to higher system availability and productivity.
9. Improves Belt Tracking: Continuous monitoring and adjustment help maintain optimal belt tracking.
10. Ensures Long-Term Performance: Overall, tracking rollers contribute to the longevity and reliability of the conveyor system.

Implementing these maintenance strategies effectively can significantly mitigate conveyor belt rubber problems and ensure that conveyor systems operate efficiently and last longer. Regular inspections combined with the use of tracking rollers create a proactive maintenance environment that safeguards the conveyor’s operational integrity.

Innovative Solutions and Case Studies for Conveyor Belt Rubber Problems

The ongoing evolution of conveyor belt technology focuses significantly on improving the durability of the belts and addressing prevalent conveyor belt rubber problems. Advances in materials science and engineering have led to the development of new technologies and materials that enhance the performance and longevity of conveyor belts. Below, we highlight six such innovations, followed by case studies displayed in a table format that demonstrates how these interventions have successfully addressed rubber issues in various industries.

Looking for conveyor rollers? Contact our experts today.

New Technologies and Materials

1. Kevlar®-Reinforced Belts: Known for its use in bulletproof vests, Kevlar® offers high tensile strength and enhanced durability. Belts reinforced with Kevlar® fibers are particularly effective in reducing tears and punctures in harsh operational environments.
2. Silicone-Based Rubber Compounds: Silicone rubbers provide excellent high-temperature resistance and non-stick properties, making them ideal for industries where heat and adhesion pose issues for traditional rubber belts.
3. Link Belting: A modular belting system made from segments of rubber linked together, allowing for easy replacement of damaged sections. This design significantly reduces downtime and maintenance costs.
4. Antimicrobial Rubber Belts: These belts are treated with antimicrobial agents that prevent the growth of bacteria and fungi, crucial for applications in food processing and pharmaceutical industries.
5. Dual-Layer Belting: Featuring a tough outer layer that resists abrasions and cuts, and a softer inner layer that reduces internal stress, these belts are engineered to withstand severe operating conditions.
6. Sensor-Embedded Belts: Incorporating sensors within the belt structure to monitor stress, temperature, and wear levels, enabling predictive maintenance and avoiding unexpected failures.

Case Studies Demonstrating Successful Interventions

The following table presents four case studies where innovative solutions have successfully solved specific conveyor belt rubber problems across different industries:

Industry	Problem Description	Solution Implemented	Outcome
Mining	High incidence of belt tears from sharp rocks	Kevlar®-reinforced conveyor belts	Dramatic reduction in belt failures, extended belt life
Food Processing	Belt deterioration due to heat and food residues	Silicone-based rubber compounds	Enhanced belt durability and compliance with hygiene standards
Packaging	Frequent downtime due to belt damage	Link belting technology	Reduced maintenance times, increased operational uptime
Pharmaceutical	Contamination risks from microbial growth	Antimicrobial rubber belts	Improved product safety, reduced risk of product recalls

These case studies illustrate the impact of targeted technological advancements in solving specific conveyor belt rubber problems, enhancing operational efficiency, and fostering industry compliance with safety and quality standards. By implementing these innovative solutions, companies can not only solve existing issues but also significantly improve their production processes and reduce long-term costs.

FAQs about Conveyor Belt Rubber Problems

Last Updated on July 31, 2024 by Jordan Smith
