Practical Tips on How to Calculate RPM of Conveyor Belt

Understanding how to calculate RPM of conveyor belt is crucial for optimizing conveyor system performance. Calculating the RPM helps in determining the belt’s operational speed, ensuring it functions efficiently and safely. This guide provides an overview of the importance and methods of calculating the RPM of conveyor belts, utilizing various PDF resources. These resources offer step-by-step instructions, formulas, and practical examples, making it easier for engineers and technicians to accurately calculate the RPM and maintain optimal conveyor performance. The PDF resources serve as essential tools for anyone involved in the design, maintenance, or operation of conveyor systems.

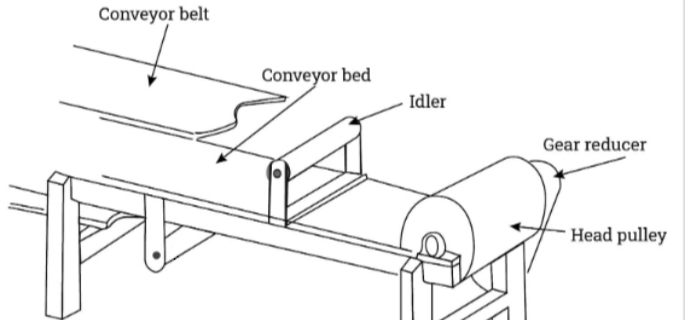

What Is RPM of Conveyor Belt?

The RPM (Revolutions Per Minute) of a conveyor belt is a critical measurement that determines the speed at which the conveyor belt moves. Understanding the RPM of a conveyor belt is essential for various industries that rely on conveyor systems for the transportation of materials. This guide will explore what RPM is, how it affects conveyor belt operation, and how to calculate it.

Understanding RPM

RPM stands for Revolutions Per Minute, which indicates the number of complete turns a rotating object makes in one minute. In the context of conveyor belts, RPM measures how many times the head pulley (the driving pulley) completes a full rotation in one minute.

Importance of RPM in Conveyor Belts

The RPM of a conveyor belt is crucial because it directly influences the belt’s speed, which impacts the efficiency and throughput of the entire conveyor system. A higher RPM means the belt moves faster, allowing more material to be transported in a given time. Conversely, a lower RPM results in slower belt movement and reduced material flow.

Factors affecting RPM of Conveyor Belt

The RPM (Revolutions Per Minute) of a conveyor belt is influenced by various factors that can affect the efficiency and performance of the conveyor system. Understanding these factors is crucial for optimizing conveyor operations. Here are the primary factors affecting the RPM of a conveyor belt:

Motor Speed

Motor Speed: The speed at which the motor drives the head pulley is one of the most significant factors affecting the RPM of a conveyor belt. The motor speed is typically measured in RPM, and it directly determines the rotation speed of the head pulley. Higher motor speeds result in higher RPMs for the conveyor belt.

Pulley Size

Pulley Diameter: The diameter of the head pulley has a direct impact on the RPM of the conveyor belt. Larger pulleys require fewer revolutions to move the belt a certain distance, resulting in a lower RPM. Conversely, smaller pulleys increase the RPM as they require more revolutions to cover the same distance.

Belt Speed

Belt Speed: The speed at which the conveyor belt moves, usually measured in feet per minute (ft/min), affects the RPM calculation. Higher belt speeds generally require higher RPMs to maintain the desired conveyor performance.

Load Weight

Load Weight: The weight of the material being transported on the conveyor belt can influence the RPM. Heavier loads may require adjustments in the motor speed or pulley size to maintain optimal RPM and prevent slippage or mechanical strain.

Belt Tension

Belt Tension: Proper belt tension is crucial for maintaining consistent RPM. Insufficient tension can lead to belt slippage, reducing the effective RPM and causing irregular belt movement. Over-tensioning, on the other hand, can cause excessive wear and tear on the belt and pulleys.

Friction

Friction: The friction between the conveyor belt and the pulleys, as well as between the belt and the transported material, affects the RPM. Higher friction can lead to increased resistance, requiring more power and potentially reducing the RPM. Lubrication and proper maintenance can help manage friction levels.

Conveyor Design

Conveyor Design: The overall design of the conveyor system, including the length, incline, and type of conveyor belt used, can impact the RPM. For example, inclined conveyors may require higher RPMs to move materials uphill, while longer conveyors may need adjustments to ensure consistent belt speed and RPM across the entire length.

Environmental Conditions

Environmental Conditions: External factors such as temperature, humidity, and exposure to dust or other contaminants can affect the conveyor belt’s RPM. For instance, extreme temperatures can cause the belt material to expand or contract, altering the tension and RPM.

Maintenance and Wear

Maintenance and Wear: Regular maintenance and monitoring of the conveyor system are essential to ensure consistent RPM. Worn-out pulleys, belts, or other components can lead to fluctuations in RPM, affecting the overall efficiency of the conveyor system.

The RPM of a conveyor belt is influenced by multiple factors, including motor speed, pulley size, belt speed, load weight, belt tension, friction, conveyor design, environmental conditions, and maintenance. By understanding and managing these factors, industries can optimize conveyor performance, ensuring efficient and reliable material handling. Regular monitoring and maintenance are crucial to maintaining consistent RPM and extending the lifespan of conveyor system components.

Step-by-Step Guide: How to Calculate RPM of Conveyor Belt Using

Calculating the RPM (Revolutions Per Minute) of a conveyor belt is essential for ensuring efficient and effective operation of conveyor systems. This step-by-step guide will provide detailed instructions on how to calculate RPM of conveyor belt using practical examples and tools commonly found in the industry.

To begin with, it is crucial to understand the fundamental concepts involved in the calculation. RPM refers to the number of revolutions the conveyor’s drive roller makes in one minute. This is directly related to the linear speed of the conveyor belt, which is usually measured in feet per minute (FPM) or meters per minute (MPM).How to Calculate RPM of Conveyor Belt：The calculation formula for RPM of conveyor belt is: RPM={Belt Speed ​​(ft/min)}× 12 /π ×Pulley Diameter（inches）.

Tools Required

To calculate RPM, you will need the following tools:

• A tape measure or ruler to measure the diameter of the drive roller.
• A stopwatch or tachometer to measure the time taken for one revolution.
• A calculator to perform the necessary arithmetic operations.

Measuring the Drive Roller Diameter

The first step in the process is to measure the diameter of the drive roller. This is the roller that drives the conveyor belt and is usually located at the end of the conveyor system. Use the tape measure or ruler to measure the diameter from one edge of the roller to the other, ensuring that you measure through the center point for accuracy.

Determining the Circumference

Once you have the diameter, the next step is to determine the circumference of the drive roller. The circumference is the distance around the roller and can be found by multiplying the diameter by a constant factor. This will give you the linear distance traveled by the belt in one complete revolution of the drive roller.

Measuring the Time for One Revolution

Using a stopwatch or tachometer, measure the time taken for one complete revolution of the drive roller. This can be done by marking a point on the roller and timing how long it takes to return to that point after one full rotation.

Calculating the RPM

With the time measurement in hand, you can now calculate the RPM. This is done by dividing 60 (the number of seconds in a minute) by the time taken for one revolution. This will give you the number of revolutions per minute of the drive roller.

Practical Example

Let’s consider a practical example. Suppose the diameter of the drive roller is 12 inches, and it takes 2 seconds for one complete revolution. The circumference of the roller would be approximately 37.7 inches (since 12 inches x 3.14 equals 37.68 inches). If it takes 2 seconds for one revolution, the RPM would be 30 (since 60 seconds divided by 2 seconds equals 30).

Verification and Adjustment

After calculating the RPM, it is essential to verify the accuracy of your calculations. This can be done by cross-referencing with the conveyor system’s specifications or consulting with an expert. If necessary, adjust your calculations based on the verification results to ensure accuracy.

Importance of Regular Monitoring

Regular monitoring of the conveyor belt’s RPM is vital for maintaining optimal performance. Any deviations from the standard RPM can indicate potential issues with the system, such as slippage or mechanical wear. Regular checks and maintenance can help in identifying and addressing these issues promptly.

Additional Tips

• Ensure all measurements are taken accurately and consistently.
• Use calibrated tools to avoid measurement errors.
• Record all data and calculations for future reference and comparison.

By following these detailed steps, you can accurately calculate the RPM of a conveyor belt, ensuring the system operates efficiently and effectively. This knowledge is essential for maintaining the longevity and performance of your conveyor system.

Methods for How to Calculate RPM of Conveyor Belt Metric

In many industries, measurements are often taken using the metric system. Understanding how to calculate RPM of conveyor belt using metric units is essential for accuracy and consistency in global operations. This section will explain the methods used to calculate RPM of conveyor belts using metric units for precision.

Metric System Basics

The metric system uses meters as the base unit for measuring length. When calculating RPM, it is important to convert all measurements to metric units for consistency. This ensures that the calculations are accurate and can be easily understood by professionals worldwide.

Tools Required

The tools required for calculating RPM using metric units are similar to those used in the imperial system:

• A tape measure or ruler marked in meters or centimeters.
• A stopwatch or tachometer.
• A calculator.

Measuring the Drive Roller Diameter in Metric Units

Begin by measuring the diameter of the drive roller in centimeters. Ensure that the measurement is accurate and taken from edge to edge through the center point of the roller. This will provide the diameter in metric units.

Determining the Circumference in Metric Units

Convert the diameter measurement to the circumference by multiplying it by a constant factor. This gives the distance the belt travels in one complete revolution of the drive roller. Using the metric system, the formula remains the same but the units will be in centimeters or meters.

Measuring the Time for One Revolution

Using a stopwatch or tachometer, measure the time taken for one complete revolution of the drive roller in seconds. This is a crucial step in determining the RPM in metric units.

Calculating the RPM in Metric Units

Divide 60 (the number of seconds in a minute) by the time taken for one revolution. This gives the RPM of the drive roller in metric units. Ensure that all calculations are precise to maintain accuracy.

Formula for Calculating RPM

The formula for calculating the RPM of a conveyor belt is:

Where:

• Belt Speed is the speed of the conveyor belt in feet per minute (ft/min).
• Pulley Diameter is the diameter of the head pulley in inches.
• π\piπ is a constant (approximately 3.14159).

Practical Example in Metric Units

Consider an example where the diameter of the drive roller is 0.3 meters, and it takes 2 seconds for one complete revolution. The circumference of the roller would be approximately 0.942 meters (since 0.3 meters x 3.14 equals 0.942 meters). If it takes 2 seconds for one revolution, the RPM would be 30 (since 60 seconds divided by 2 seconds equals 30).

Verification and Adjustment in Metric Units

Verify the accuracy of your calculations by comparing them with the conveyor system’s specifications or consulting with an expert. Adjust your calculations if necessary to ensure they are accurate and consistent with metric units.

Importance of Using Metric Units

Using metric units for calculations is essential in industries that operate globally. It ensures consistency and accuracy in measurements and calculations, which is vital for maintaining the performance and efficiency of conveyor systems.

Additional Tips for Metric Calculations

• Ensure all measurements are taken in metric units.
• Use calibrated tools marked in metric units to avoid measurement errors.
• Record all data and calculations in metric units for future reference and comparison.

By following these detailed methods, you can accurately calculate the RPM of a conveyor belt using metric units. This ensures that your conveyor system operates efficiently and effectively, maintaining its performance and longevity.

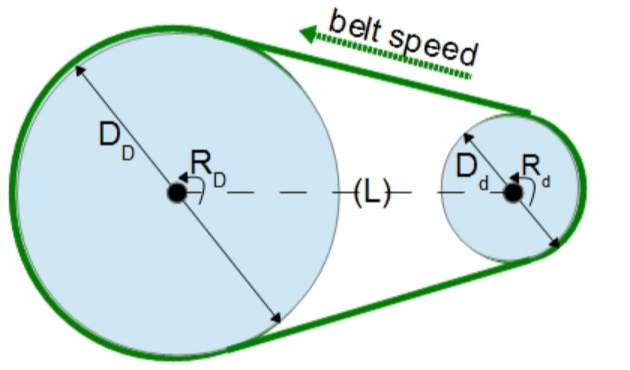

How to Calculate RPM of Conveyor Belt: Conveyor Speed Calculation PDF

Conveyor speed calculations are essential for determining the operational efficiency of conveyor systems. Various methods are available for calculating conveyor speed, and many resources provide these methods in PDF format for easy reference. This section will provide a comprehensive overview of these methods and the importance of using conveyor speed calculation PDFs.

Importance of Conveyor Speed Calculations

Calculating the speed of a conveyor belt is crucial for optimizing the performance and efficiency of the system. It helps in determining the throughput, ensuring that the conveyor operates within its design parameters, and identifying potential issues before they become problematic.

Tools and Resources

Many tools and resources are available to assist with conveyor speed calculations. PDF documents are particularly useful as they provide detailed instructions, examples, and formulas in a portable and easy-to-reference format. These PDFs can be accessed and used in various industrial settings to ensure accurate and consistent calculations.

Types of Conveyor Speed Calculation Methods

There are several methods for calculating conveyor speed, each suitable for different types of conveyors and applications. Some of the common methods include:

• Measuring the belt speed directly using a tachometer or other measuring device.
• Calculating the speed based on the drive roller diameter and RPM.
• Using online calculators or software tools designed for conveyor speed calculations.

Using Conveyor Speed Calculation PDFs

PDF documents that detail conveyor speed calculation methods are invaluable resources. They typically include step-by-step instructions, detailed explanations of formulas, and practical examples. These PDFs can be downloaded and printed, making them easy to use in the field or office.

Practical Example from a Conveyor Speed Calculation PDF

Consider a conveyor system with a drive roller diameter of 0.5 meters and an RPM of 20. A conveyor speed calculation PDF would provide the formula to calculate the speed as follows:

• Measure the drive roller diameter in meters.
• Multiply the diameter by the constant factor to determine the circumference.
• Multiply the circumference by the RPM to determine the conveyor speed in meters per minute.

Advantages of Using PDFs

PDFs offer several advantages for conveyor speed calculations:

• Portability: PDFs can be easily shared and accessed on various devices.
• Consistency: PDFs provide standardized methods and formulas, ensuring consistent calculations.
• Reference: PDFs serve as a permanent reference, allowing users to revisit the information as needed.

Accessing Conveyor Speed Calculation PDFs

Many manufacturers and industry organizations provide conveyor speed calculation PDFs. These can be found on their websites, through industry associations, or by contacting the manufacturers directly. Accessing these resources ensures that you have the latest and most accurate information for your calculations.

Ensuring Accuracy in Calculations

When using PDFs for conveyor speed calculations, it is essential to ensure that the measurements and data used are accurate. This includes using calibrated tools and following the instructions provided in the PDF precisely. Regularly reviewing and updating your methods based on new information or updated PDFs can also help maintain accuracy.

Conveyor speed calculation PDFs are invaluable resources for anyone involved in the design, maintenance, or operation of conveyor systems. They provide detailed, standardized methods for calculating conveyor speed, ensuring that your system operates efficiently and effectively. By utilizing these PDFs and following the comprehensive instructions they provide, you can maintain the performance and longevity of your conveyor systems.

How to Calculate RPM of Conveyor Belt: Conveyor Speed Unit in Belt Calculations

In the realm of industrial machinery, especially when dealing with conveyor belts, understanding the various units of measurement for speed is critical. Conveyor speed units are essential for calculating the performance and efficiency of a conveyor belt system. This section delves into the different conveyor speed units, their significance, and their application in belt conveyor calculations, providing a comprehensive understanding of how to calculate rpm of conveyor belt.

Common Conveyor Speed Units

Conveyor speed is generally expressed in units that denote the linear velocity of the belt. The most common units used in conveyor belt speed calculations are:

Feet Per Minute (FPM):

• FPM is a standard unit of measurement in the United States and is often used in industries where linear distance covered per unit time is a critical factor. It provides a straightforward measure of how quickly the conveyor belt moves.

Meters Per Minute (MPM):

• MPM is widely used in metric system countries and provides a similar measure to FPM but in metric units. It is essential for industries operating in international contexts to understand and use MPM.

Revolutions Per Minute (RPM):

• RPM measures the rotational speed of the conveyor belt drum or drive pulley. It is a critical unit for understanding the mechanical speed of the conveyor system and is essential for maintenance and troubleshooting.

Inches Per Second (IPS):

• IPS is another unit of measure used for smaller, more precise conveyor systems. It is often applied in industries requiring high precision and detail, such as electronics and pharmaceuticals.

Application of Conveyor Speed Units in Calculations

Understanding the appropriate unit for a given application is crucial. Each unit offers specific insights into the performance and operation of the conveyor system.

Feet Per Minute (FPM)

FPM is a practical unit for large-scale industrial applications. To calculate the FPM of a conveyor belt, you need to measure the distance the belt travels in feet over a certain period of time, usually one minute.

Meters Per Minute (MPM)

MPM is the metric counterpart to FPM. It is calculated similarly but uses metric units. This involves measuring the distance the belt travels in meters over a minute.

Revolutions Per Minute (RPM)

RPM is essential for understanding the mechanical speed of the drive system. It is calculated by considering the linear speed of the conveyor belt and the diameter of the drive pulley. Knowing how to calculate rpm of conveyor belt can help in setting the appropriate speed for various applications.

Inches Per Second (IPS)

IPS is used in high-precision industries. It is calculated by measuring the distance the belt travels in inches over one second. This unit allows for fine-tuned adjustments and measurements, ensuring that conveyor systems operate within the required specifications.

Importance of Accurate Speed Calculations

Accurate speed calculations are vital for the efficient operation of conveyor belt systems. Miscalculations can lead to:

• Reduced Efficiency: Incorrect speed settings can cause bottlenecks, slowing down production and increasing operational costs.
• Increased Wear and Tear: Over-speeding or under-speeding the conveyor belt can result in excessive wear, leading to frequent maintenance and downtime.
• Safety Hazards: Improper speed settings can pose safety risks to workers and equipment, leading to accidents and injuries.

Understanding and applying the correct conveyor speed units ensures that conveyor systems operate efficiently, safely, and cost-effectively. It also aids in troubleshooting and optimizing conveyor performance, leading to improved productivity and reduced operational costs.

How to Use Belt Conveyor Speed Calculation Online Tools

In today’s digital age, online tools and calculators have revolutionized how industrial calculations are performed. Belt conveyor speed calculation online tools are a prime example of this transformation, offering quick and accurate methods to determine the speed of belt conveyors. This section provides a comprehensive guide on utilizing these tools effectively, ensuring you understand how to calculate rpm of conveyor belt with ease and precision.

Overview of Online Calculation Tools

Online belt conveyor speed calculators are designed to simplify the process of determining conveyor belt speeds. These tools typically require input data such as:

• Belt length: The total length of the conveyor belt.
• Drive pulley diameter: The diameter of the drive pulley.
• Motor RPM: The rotational speed of the conveyor’s drive motor.
• Gear ratio: The ratio of the gear system connected to the drive motor.

Using these inputs, the calculators provide accurate speed measurements in units such as FPM, MPM, or RPM. The key advantage of these tools is their ability to perform complex calculations quickly, reducing the likelihood of human error.

Steps to Use Online Conveyor Speed Calculators

Step 1: Gather Required Data

Before using an online calculator, ensure you have all the necessary data. This includes the belt length, drive pulley diameter, motor RPM, and gear ratio. Accurate data collection is crucial for precise calculations.

Step 2: Select a Reliable Online Tool

There are numerous online calculators available, but it’s essential to choose a reliable one. Look for tools provided by reputable manufacturers or industry organizations. Some popular options include:

• Engineering Toolbox: Offers a range of engineering calculation tools, including conveyor speed calculators.
• Belt Analyst: A comprehensive software suite for conveyor design and analysis, including speed calculations.
• Calculator.net: Provides a straightforward conveyor belt speed calculator that is easy to use.

Step 3: Input Data into the Calculator

Enter the collected data into the calculator. Most tools will have fields for each required input, ensuring that you provide the necessary information accurately.

Step 4: Interpret the Results

Once you input the data, the calculator will provide the conveyor speed in the desired unit. Review the results to ensure they align with your expectations and requirements. If any discrepancies arise, double-check the input data for accuracy.

Benefits of Using Online Calculation Tools

Efficiency

Online calculators significantly reduce the time required to perform complex calculations. This efficiency is particularly beneficial in fast-paced industrial environments where quick decision-making is crucial.

Accuracy

These tools minimize the risk of human error, providing accurate results based on the input data. This accuracy ensures that conveyor systems operate optimally, reducing the likelihood of issues arising from incorrect speed settings.

Accessibility

Online tools are easily accessible from any device with an internet connection. This accessibility allows engineers and technicians to perform calculations on-site, ensuring immediate adjustments and troubleshooting can be carried out.

Cost-Effectiveness

Using online calculators eliminates the need for specialized software or equipment, reducing costs associated with speed calculations. This cost-effectiveness is especially advantageous for small to medium-sized enterprises.

Example Calculation Using an Online Tool

To illustrate the process, let’s consider an example calculation using a hypothetical online tool. Suppose you need to determine the speed of a conveyor belt with the following specifications:

• Belt length: 100 feet
• Drive pulley diameter: 2 feet
• Motor RPM: 1750 RPM
• Gear ratio: 2:1

Using an online calculator, you would input these values into the respective fields. The tool would then process the data and provide the conveyor speed, typically in FPM or RPM. This result can be used to adjust the conveyor system for optimal performance.

Online belt conveyor speed calculation tools are invaluable resources for engineers and technicians. By providing quick, accurate, and accessible calculations, these tools ensure that conveyor systems operate efficiently and effectively. Understanding how to use these tools is crucial for anyone involved in the maintenance, design, or operation of conveyor belt systems. Knowing how to calculate rpm of conveyor belt using online tools can streamline operations and enhance overall productivity.

How to Calculate RPM of Conveyor Belt: Utilizing V Belt Speed Calculator for Conveyor RPM

In industrial settings, V belts are commonly used in conveyor systems due to their efficiency and reliability. Understanding how to calculate the RPM of conveyor belts using a V belt speed calculator is essential for maintaining optimal performance and ensuring the longevity of the conveyor system. This section provides a detailed look at how to use a V belt speed calculator to find the RPM of conveyor belts accurately, including practical steps and considerations.

What is a V Belt?

A V belt is a type of belt with a V-shaped cross-section that fits into a corresponding pulley groove. This design allows for efficient power transmission between the drive motor and the conveyor system. V belts are favored for their ability to handle high loads and their resistance to slipping.

Importance of V Belt Speed Calculation

Accurately calculating the speed of a V belt is crucial for several reasons:

• Performance Optimization: Ensures that the conveyor operates at the desired speed, enhancing productivity.
• Maintenance: Helps in identifying issues related to belt wear and tear, allowing for timely maintenance and replacement.
• Safety: Prevents accidents caused by incorrect speed settings, ensuring safe operation of the conveyor system.

Steps to Use a V Belt Speed Calculator

Step 1: Gather Necessary Information

To use a V belt speed calculator, you need the following information:

• Diameter of the drive pulley: The diameter of the pulley attached to the drive motor.
• Diameter of the driven pulley: The diameter of the pulley attached to the conveyor belt.
• Motor RPM: The rotational speed of the drive motor.

Step 2: Select an Appropriate Calculator

Choose a reliable V belt speed calculator. Many online tools and software are available that provide accurate calculations. Some popular options include:

• V Belt Calculation Software: Specialized software designed for detailed V belt calculations.
• Online V Belt Calculators: Accessible tools available on websites of conveyor belt manufacturers or engineering forums.

Step 3: Input the Data

Enter the collected data into the calculator. Most tools will have fields for the drive pulley diameter, driven pulley diameter, and motor RPM. Ensure that the data is accurate to get precise results.

Step 4: Calculate and Interpret Results

The calculator will process the data and provide the RPM of the conveyor belt. Review the results

to ensure they meet your requirements. If the calculated RPM is not within the desired range, you may need to adjust the pulley sizes or motor speed accordingly.

Example Calculation Using a V Belt Speed Calculator

Consider an example where you need to determine the RPM of a conveyor belt with the following specifications:

• Drive pulley diameter: 4 inches
• Driven pulley diameter: 8 inches
• Motor RPM: 1750 RPM

Using a V belt speed calculator, you input these values into the respective fields. The calculator will then provide the RPM of the driven pulley, which in this case would be calculated by dividing the motor RPM by the ratio of the pulley diameters. This result indicates that the driven pulley (and thus the conveyor belt) would rotate at 875 RPM. This calculation is essential for setting the correct speed for the conveyor system.

Benefits of Using a V Belt Speed Calculator

Precision

V belt speed calculators provide precise results, ensuring that the conveyor system operates at the optimal speed. This precision is crucial for maintaining productivity and preventing wear and tear.

Efficiency

These calculators save time by quickly processing complex calculations. This efficiency is particularly beneficial in industrial settings where time is a critical factor.

Ease of Use

V belt speed calculators are user-friendly and do not require extensive technical knowledge. This accessibility allows operators and technicians to perform calculations without the need for specialized training.

Troubleshooting and Adjustments

If the calculated RPM is not within the desired range, consider the following adjustments:

• Change Pulley Sizes: Adjust the diameters of the drive or driven pulleys to achieve the desired RPM.
• Modify Motor Speed: Use a variable speed drive to alter the motor RPM, thereby changing the conveyor belt speed.
• Check Belt Tension: Ensure that the V belt is properly tensioned to avoid slippage and inaccurate speed readings.

Using a V belt speed calculator to find the RPM of conveyor belts is a crucial skill for anyone involved in the design, maintenance, or operation of conveyor systems. These calculators provide precise, efficient, and easy-to-use solutions for determining the correct speed settings, ensuring optimal performance and longevity of the conveyor system. Understanding how to calculate rpm of conveyor belt using a V belt speed calculator enhances productivity, safety, and efficiency in industrial operations.

Understanding conveyor speed units, utilizing online calculation tools, and accurately using V belt speed calculators are essential components in the efficient operation of conveyor belt systems. These skills ensure that conveyor systems run smoothly, safely, and at optimal performance, ultimately contributing to the success and productivity of industrial operations.

FAQs about How to Calculate RPM of Conveyor Belt

Last Updated on August 14, 2024 by Jordan Smith
