How to Calculate Tons per Hour on Conveyor Belt
In the realm of material handling and industrial operations, mastering how to calculate tons per hour on conveyor belt is not just a technical skill—it’s a necessity for optimizing productivity and efficiency. Conveyor belts are pivotal in a multitude of industries, including mining, agriculture, pharmaceuticals, and manufacturing, serving as the backbone for bulk material transport.The ability to accurately calculate the capacity of a conveyor belt in tons per hour is critical for determining the conveyor’s operational efficiency and ensuring it meets production targets. This calculation, how to calculate tons per hour on conveyor belt, helps in the design, selection, and implementation of conveyor systems, ensuring they are adequate for the task at hand without being overly sized or underutilized.How to calculate tons per hour on conveyor belt:TPH=(Belt SpeedxMaterial DensityxCross-sectional Area of Load)÷2000. Understanding this key metric empowers businesses to make informed decisions on conveyor belt selection, operational parameters, and investment, leading to improved operational efficiency, cost savings, and enhanced productivity.

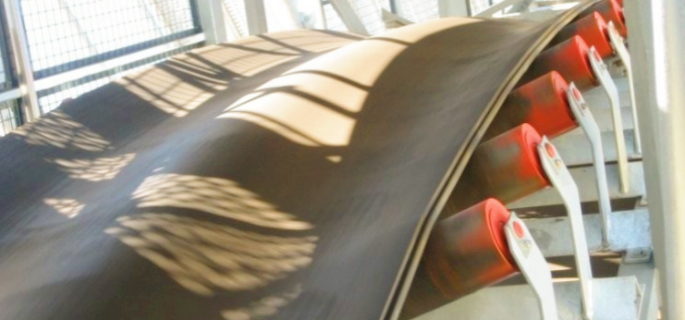

How to Calculate Tons per Hour on Conveyor Belt: Understanding Conveyor Belt Capacity
Conveyor belt capacity is a critical measure that determines the volume of material that can be transported on a conveyor belt over a specific period, usually measured in tons per hour. This capacity is vital for operational planning, equipment selection, and process optimization. For instance, in a mining operation, understanding how to calculate tons per hour on conveyor belt can dictate the pace at which ore is moved from the mine to the processing plant. Similarly, in agriculture, it affects how quickly grain can be transported from storage to shipping containers.
The capacity of a conveyor belt is influenced by several key factors:
- Belt Speed: The speed at which the belt moves affects how quickly material is transported. A faster belt speed increases the capacity, assuming the belt can carry the additional load.
- Belt Width: The wider the belt, the more material it can carry. This is because a wider belt has a larger surface area for material to rest on.
- Material Density: Heavier materials will affect how much volume can be moved per hour, as the weight limits of the belt need to be considered to avoid overloading.
- The Angle of Incline: Conveyors operating on an incline must work against gravity, reducing their capacity as the incline becomes steeper. The material’s tendency to slide back or compress can also impact capacity.
- Load Cross Section: The shape and size of the material load cross-section directly influence the volume of material that can be carried. Optimal loading conditions and even distribution of material can maximize capacity.
Understanding these factors is crucial when determining how to calculate tons per hour on conveyor belt. By optimizing each of these elements, operations can ensure their conveyor systems are running at maximum efficiency, contributing to better throughput, reduced operational costs, and improved overall performance.
How to Calculate Tons per Hour on Conveyor Belt: Calculating Belt Conveyor Capacity
Calculating the capacity of a belt conveyor is essential for operational efficiency and ensuring the conveyor system meets the demands of the operation. The basic formula for calculating conveyor belt capacity is a vital tool for engineers and operations managers. This formula, expressed as C=BSDV/K, allows for the calculation of the tons per hour a conveyor belt can handle, where:
- C represents the Conveyor capacity in tons per hour,
- BS stands for Belt Speed in feet per minute,
- D is the Density of the conveyed material in pounds per cubic foot,
- K is the Sine of the angle of incline,
- V denotes the Load per square foot.
To put this into perspective, let’s break down each component of the formula:
- Belt Speed (BS): This is how fast the belt moves, directly affecting how quickly material is carried along. Faster speeds result in higher capacities.
- Density of the Material (D): Heavier materials will affect the volume that can be transported, as the weight of the material is a crucial factor in the calculation.
- Load per Square Foot (V): This factor considers how much material is on the belt per square foot, influencing the overall capacity.
- Sine of the Angle of Incline (K): The efficiency of the conveyor belt decreases as the angle of incline increases, which is adjusted for in the calculation by the sine of the angle.
![Calculating Belt Conveyor Capacity](https://www.gramconveyor.com/wp-content/uploads/2024/08/Calculating-Belt-Conveyor-Capacity.png)
Step-Step Guide:How to Calculate Tons per Hour on Conveyor Belt
To calculate the tons per hour (TPH) of material being conveyed on a conveyor belt, you can use the following formula:
![tph](https://www.gramconveyor.com/wp-content/uploads/2024/08/tph.jpg)
Here’s a step-by-step guide on how to perform this calculation:
- Measure Belt Speed: Determine the speed of the conveyor belt in feet per minute (FPM). This can be done using a tachometer or other speed measuring device.
- Determine Material Density: Find out the density of the material being conveyed in pounds per cubic foot (lb/ft³). This information is often available from the material supplier or can be determined through testing.
- Calculate Cross-sectional Area of Load: Measure the cross-sectional area of the material load on the belt in square feet (ft²). This involves measuring the width of the load and the height of the load at several points, then calculating an average.
- Apply the Formula: Plug the values into the formula to find the TPH.
Example Calculation
Let’s say you have the following data:
- Belt Speed: 100 FPM
- Material Density: 50 lb/ft³
- Cross-sectional Area of Load: 2 ft²
Using the formula:
[ TPH = {100 × 50 × 2}÷2000 ]
[ TPH = 10000÷2000 ]
[ TPH = 5 ]
Therefore, the conveyor belt is conveying 5 tons per hour of material.
Additional Considerations
- Accuracy: Ensure measurements are as accurate as possible for reliable calculations.
- Belt Load: For more precise measurements, consider using a belt scale, which directly measures the weight of material on the belt and can often provide real-time TPH readings.
If you have specific values or additional details, feel free to share, and I can help you with a more tailored calculation.
Calculate Tons per Hour on Conveyor Belt Considerations
When calculating the tons per hour (TPH) on a conveyor belt, several considerations and factors can impact the accuracy and reliability of your calculation. Here are the key points to consider:
1. Belt Speed
- Measurement: Ensure the belt speed is accurately measured, typically in feet per minute (FPM). Use a reliable tachometer or other speed measurement devices.
- Consistency: Check for consistent belt speed, as variations can affect the accuracy of TPH calculations.
2. Material Density
- Uniformity: Ensure the material density is consistent and uniform. Variations in moisture content, particle size, and compaction can affect density.
- Source: Obtain material density from reliable sources or conduct testing if the material characteristics are unknown.
3. Cross-sectional Area of Load
- Load Shape: The cross-sectional area of the load depends on the shape of the material load on the belt (troughed, flat, etc.).
- Measurement: Measure the width and height of the material load accurately at multiple points to determine the average cross-sectional area.
4. Belt Width and Loading
- Belt Width: Ensure the conveyor belt width is adequate for the material load and provides a consistent cross-sectional area.
- Loading Conditions: Consider the loading conditions and ensure the material is evenly distributed across the belt width.
5. Incline of the Conveyor
- Angle of Incline: For inclined conveyors, the effective material load can change. Calculate the angle of incline and adjust the TPH calculation accordingly.
- Impact: The steeper the incline, the more significant the impact on the load and TPH.
6. Environmental Conditions
- Temperature and Humidity: These can affect the material’s properties and the belt’s performance.
- Wind and Dust: In outdoor installations, wind and dust can impact the material load on the belt.
7. Real-time Monitoring
- Belt Scales: Consider using belt scales for continuous and real-time TPH measurement. These systems use load cells and speed sensors to provide accurate readings.
- Calibration: Regularly calibrate the belt scale to maintain accuracy.
8. Maintenance and Condition of the Belt
- Wear and Tear: Regularly inspect the belt for wear and tear, which can affect the speed and load distribution.
- Alignment: Ensure the belt is properly aligned to avoid uneven loading and potential measurement errors.
Example Calculation with Considerations
Let’s calculate TPH with considerations:
- Belt Speed (V): 150 FPM
- Material Density (D): 55 lb/ft³
- Cross-sectional Area (A): 2.5 ft²
- Incline Adjustment: Assume a horizontal conveyor for simplicity
Using the formula:
![considerations](https://www.gramconveyor.com/wp-content/uploads/2024/08/considerations.jpg)
Therefore, the conveyor belt is handling approximately 10.31 tons per hour, considering the given parameters. Regularly review and consider these factors to maintain accurate and reliable TPH calculations.
Step-by-Step Guide on Using Excel Spreadsheets for How to Calculate Tons per Hour on Conveyor Belt
Excel spreadsheets can be an invaluable tool for performing these calculations efficiently and accurately. Here’s a simplified step-by-step guide to using Excel for calculating conveyor belt capacity:
- Prepare Your Spreadsheet: Set up columns for each of the variables in the formula: Belt Speed (BS), Density (D), Load (V), and the Angle of Incline (K). Also, set up a column for the Conveyor Capacity (C).
- Input Your Data: Enter the known values for your operation into the spreadsheet. For the angle of incline, you will need to calculate the sine value separately and input this number.
- Calculate the Sine of the Angle of Incline: Use Excel’s SIN function to calculate the sine of the angle of incline, which should be input in radians (if your angle is in degrees, convert it by multiplying by PI()/180).
- Implement the Formula: In the cell for Conveyor Capacity (C), input the formula =BSDV/K, referencing the cells where these values are located.
- Analyze Your Results: Once you input all your data and the formula, Excel will calculate the conveyor belt’s capacity in tons per hour.
For example, if your conveyor belt moves at 300 feet per minute (BS), carries material with a density of 50 pounds per cubic foot (D), has a load of 30 pounds per square foot (V), and is set at a 20-degree incline (K = SIN(20*PI()/180)), the capacity would be calculated as follows in Excel. This straightforward process allows for quick adjustments and scenario analysis, making it an indispensable method for those learning how to calculate tons per hour on conveyor belt.
Optimize productivity with our premium conveyor belts. Inquire today!
How to Calculate Tons per Hour on Conveyor Belt: Conveyor Belt Capacity Calculator and Charts
When it comes to optimizing the efficiency and throughput of conveyor belt systems, understanding how to calculate tons per hour on conveyor belt is paramount. Conveyor belt capacity calculators and charts offer an invaluable resource for this purpose, simplifying the complex calculations required to accurately determine conveyor capacity. These tools take into account the various factors influencing conveyor belt performance, such as belt speed, material density, load per square foot, and the angle of incline, offering a more straightforward approach to calculating capacity.
Conveyor belt capacity calculators are typically available online, offering an interactive way to input your specific operational parameters (such as belt speed, belt width, material density, and angle of incline) and receive instant capacity calculations. This not only streamlines the planning and operational processes but also assists in selecting the right conveyor belt for specific material handling requirements.
Additionally, conveyor belt capacity charts serve as a quick reference guide, presenting the capacities of various belt sizes and speeds based on standard material densities. These charts are particularly useful for preliminary planning stages and for comparing the capacities of different conveyor belt configurations at a glance. They provide a range of capacities for different belt widths and speeds, enabling users to make informed decisions about the suitability of a particular belt for their needs.
The use of these calculators and charts effectively demystifies the process of how to calculate tons per hour on conveyor belt, making it accessible to engineers, operational managers, and decision-makers across industries. By leveraging these tools, businesses can ensure that their conveyor systems are not only capable of meeting the demands of their operations but are also optimized for maximum efficiency and productivity.
![Conveyor Belt Capacity Calculator and Charts](https://www.gramconveyor.com/wp-content/uploads/2024/08/Conveyor-Belt-Capacity-Calculator-and-Charts.png)
Considerations for Capacity Calculation: How to Calculate Tons per Hour on Conveyor Belt
In the process of determining how to calculate tons per hour on conveyor belt, several critical factors must be taken into account to ensure accurate and reliable capacity calculations. These considerations are fundamental not only to the design and selection of a conveyor system but also to its operational success and efficiency.
- Material Characteristics: The physical properties of the material being conveyed, such as bulk density, abrasiveness, and moisture content, significantly influence the conveyor’s capacity. Materials that are denser or more abrasive may require different handling considerations compared to lighter or non-abrasive materials.
- Conveyor Belt Design: The design features of the conveyor belt itself, including the belt width, belt type (e.g., smooth, cleated, or ribbed), and the quality of the belt material, affect its capacity. A wider belt or one with a design that prevents material slippage can carry more material.
- Incline Angle: As the incline angle of a conveyor increases, the effect of gravity becomes more significant, potentially reducing the amount of material that can be transported per hour. Calculations must adjust for the angle to ensure accuracy.
- Feeding Mechanism: How material is fed onto the conveyor belt affects its capacity. Uniform and controlled feeding mechanisms can maximize capacity by preventing overloading or underloading of the belt.
- Operational Conditions: External factors such as the operating environment (temperature, humidity, and elevation), the condition of conveyor components (rollers, bearings, and motor efficiency), and maintenance practices can all impact the actual capacity of the conveyor belt. Adverse conditions may reduce capacity, requiring adjustments to the calculated values.
When considering how to calculate tons per hour on conveyor belt, incorporating these factors into your calculations ensures that the resulting figures are not only theoretical but also practically applicable to your specific operation. This comprehensive approach allows for the design and implementation of conveyor systems that are both efficient and capable of meeting the demands of various material handling applications.
How Does Belt Conveyor for Bulk Materials Calculate Tons per Hour
In the context of bulk material handling, belt conveyors are commonly used to transport large quantities of materials efficiently. The calculation for tons per hour (TPH) for a belt conveyor handling bulk materials involves several factors and typically follows a standard formula. Here is the detailed process:
Formula for Calculating TPH
The basic formula for calculating TPH on a conveyor belt is:
![bmtph](https://www.gramconveyor.com/wp-content/uploads/2024/08/bmtph.jpg)
Detailed Steps:
- Belt Speed (ft/min):
- Measure or determine the speed of the conveyor belt in feet per minute (FPM). This can be measured using a tachometer or obtained from the belt drive specifications.
- Material Density (lb/ft³):
- Determine the density of the bulk material being transported. This is usually provided by the material supplier or can be measured. It is expressed in pounds per cubic foot (lb/ft³).
- Cross-sectional Area of Load (ft²):
- Calculate the cross-sectional area of the material load on the belt. This involves the width and the average height of the material load.
- For a troughed belt conveyor, this area can be approximated using the formula for the area of a trapezoid or by using standardized charts based on belt width and loading conditions.
Practical Example
Suppose you have a belt conveyor with the following parameters:
- Belt Speed: 200 feet per minute (FPM)
- Material Density: 60 pounds per cubic foot (lb/ft³)
- Cross-sectional Area of Load: 3 square feet (ft²)
Using the formula:
[ TPH = {200 × 60 × 3}÷{2000} ]
[ TPH = {36000÷2000} ]
[ TPH = 18 ]
Therefore, the conveyor is handling 18 tons per hour.
Factors Affecting Accuracy
- Belt Load Variations: The actual load on the belt can vary, so measurements should be averaged over time or taken at multiple points.
- Material Characteristics: Moisture content, particle size, and flowability of the material can impact density and loading.
- Conveyor Incline: For inclined conveyors, the effective load may need adjustment based on the angle of incline.
Real-Time Monitoring
For continuous and real-time monitoring, belt scales can be used. These devices measure the weight of the material on the belt and the belt speed to provide direct readings of TPH. They consist of load cells and a speed sensor integrated into the conveyor system.
Conclusion
By following these steps and using the formula, you can accurately calculate the tons per hour of material being transported on a belt conveyor. For precise and real-time monitoring, consider implementing belt scales.
Weigh Feeder TPH Calculation Formula: How to Calculate Tons per Hour on Conveyor Belt
Weigh feeders play a crucial role in ensuring the accurate measurement and control of the material flow rate on conveyor systems, making the understanding of how to calculate tons per hour on conveyor belt using weigh feeder tph (tons per hour) calculation formula vital. This formula integrates seamlessly with the broader conveyor belt capacity calculations, ensuring precise control and optimization of material handling processes.
The weigh feeder TPH calculation is based on the weight of material passing over the weigh feeder in a specific time frame, typically per hour. This is achieved by measuring the weight of material on a section of the conveyor that is equipped with a precision scale. The formula for calculating the material flow rate in tons per hour (TPH) using a weigh feeder is as follows:
TPH = Total Weight Measured by the Weigh Feeder/Measurement Time in Hours
This calculation provides a direct measurement of the material flow rate, which is crucial for processes that require a high degree of accuracy, such as mixing operations, batching, or loading operations where material must be measured precisely before it is processed or shipped.
Integration with Larger Belt Conveyor Capacity Calculations
The weigh feeder TPH calculation works within the larger framework of belt conveyor capacity calculations by providing a precise measurement of the material flow rate. This allows for the adjustment of the conveyor speed, belt width, and other operational parameters to match the required material throughput, ensuring the conveyor system operates within its optimal capacity range.
For instance, if the calculated TPH from the weigh feeder is lower than the conveyor’s designed capacity, adjustments can be made to increase the feed rate by either speeding up the conveyor, adjusting the gate opening to allow more material flow, or ensuring that the material is evenly distributed across the belt. Conversely, if the TPH is higher than the conveyor’s capacity, it signals the need to reduce the feed rate to prevent overloading and potential damage to the conveyor system.
Understanding how to calculate tons per hour on conveyor belt using the weigh feeder TPH calculation formula is crucial for the effective design and operation of conveyor systems. It ensures that the material handling process is optimized for efficiency, accuracy, and safety, leading to improved productivity and reduced operational costs.
![Conveyor Belts](https://www.gramconveyor.com/wp-content/uploads/2024/06/conveyor-belt.png)
Conveyor Belt Take-up Calculation: How to Calculate Tons per Hour on Conveyor Belt
Conveyor belt take-up refers to the component of a conveyor system used to adjust the length of the conveyor belt to maintain tension. Proper tension is crucial for the belt’s operation, as it ensures smooth running, prevents slippage, and compensates for variations in belt length due to temperature changes, loading variations, or conveyor belt elongation over time. Understanding how take-ups work and how to calculate the required take-up distance is essential for maintaining the efficiency and longevity of a conveyor system.
Take-ups work by adjusting the tension of the conveyor belt. This can be done manually in some systems or automatically in more sophisticated systems. Automatic take-ups use weighted pulleys or hydraulic or pneumatic systems to maintain constant tension on the belt. The primary purpose of a take-up is to ensure that the conveyor belt has sufficient tension to prevent it from slipping on the drive pulley while not being so tight as to cause excessive wear or energy consumption.
Clear Steps on How to Calculate Conveyor Belt Take-ups
Calculating the required take-up distance involves several key steps and considerations that ensure the conveyor belt operates efficiently under varying conditions. Here’s how to approach this calculation:
- Determine the Minimum Belt Tension: Calculate the minimum tension required to prevent slippage on the drive pulley under the highest load condition. This involves understanding the coefficient of friction between the belt and the pulley, the weight of the material being transported, and the belt’s weight.
- Calculate the Maximum Belt Tension: This is the highest tension the belt will experience, typically at the point where the conveyor belt starts to carry the material. Factors such as the weight of the belt, material load, and any additional forces from inclined sections of the conveyor must be considered.
- Estimate the Elastic Stretch of the Belt: Conveyor belts stretch under tension. The amount of stretch depends on the belt material, length, and tension level. Manufacturers often provide stretch coefficients for their belts, which can be used to calculate the expected stretch over a given distance and tension.
- Calculate the Take-up Distance: The take-up distance is the total length that the take-up mechanism must be able to move to compensate for the belt stretch, changes in tension, and system wear. It is calculated as the difference between the maximum and minimum belt tensions, plus additional length to allow for belt elongation and tension adjustments. This calculation ensures that the conveyor system has enough range to maintain proper tension under all operating conditions.
Understanding and accurately calculating conveyor belt take-up is a critical aspect of designing and operating a conveyor system. It ensures that the system maintains the correct tension, preventing issues related to belt slippage or excessive wear. This consideration is an integral part of how to calculate tons per hour on conveyor belt, as it directly impacts the belt’s ability to transport material efficiently and reliably.
Belt Conveyor Design Calculation Example: How to Calculate Tons per Hour on Conveyor Belt
Incorporating capacity calculations into conveyor belt design is pivotal for ensuring that the system meets the specific needs of material handling operations. Understanding how to calculate tons per hour on conveyor belt is essential in determining key design parameters such as belt width, speed, and the overall conveyor configuration. These capacity calculations ensure that the conveyor can handle the intended load efficiently and effectively, avoiding issues such as underutilization, overloading, and excessive wear or energy consumption.
Practical Example of How to Calculate Tons per Hour on Conveyor Belt
To illustrate how these calculations are integrated into the design process, consider the following detailed examples:
Determine Conveyor Belt Speed
- Objective: Calculate the optimal belt speed to transport 500 tons of material per hour over a distance of 200 feet.
- Given: Material density is 50 pounds per cubic foot.
- Calculation: First, calculate the required belt capacity in cubic feet per minute, considering the material’s density and desired throughput. Then, determine the belt speed needed to achieve this capacity.
- Result: This calculation might show that a belt speed of 400 feet per minute is required to meet the desired capacity.
Selecting Belt Width
- Objective: Choose an appropriate belt width that can handle 500 tons per hour, based on the belt speed calculated previously.
- Given: Belt speed is 400 feet per minute, and the load cross-sectional area should not exceed the belt’s width.
- Calculation: Calculate the cross-sectional area of the load based on the material’s density and the conveyor’s speed. Then, select a belt width that can accommodate this area, considering standard belt widths.
- Result: This step may identify that a belt width of 36 inches is necessary to transport the material at the required capacity without spillage.
Calculating Conveyor Belt Length
- Objective: Determine the total length of the conveyor belt needed, taking into account the conveyor system’s layout and the calculated take-up distance.
- Given: The conveyor path includes a 15-degree incline and a total horizontal distance of 200 feet.
- Calculation: Using the incline angle and the horizontal distance, calculate the total length of the belt, including the vertical lift and the necessary take-up length for tensioning.
- Result: The calculation might conclude that a total belt length of 220 feet is required, considering the incline and the need for proper tensioning.
These examples demonstrate the step-by-step process of integrating capacity calculations into the conveyor belt design. By carefully considering how to calculate tons per hour on conveyor belt, along with other operational and material characteristics, designers can ensure that the conveyor belt system is perfectly tailored to the task at hand, balancing efficiency, capacity, and cost.
Boost your workflow with our superior conveyor belts. Reach out now!
Conveyor Belt Weight per Meter: How to Calculate Tons per Hour on Conveyor Belt
Understanding the weight per meter of a conveyor belt is crucial for several reasons, impacting both the design and operational efficiency of conveyor systems. This metric is vital for engineers and operations managers who need to ensure their conveyor systems are not only capable of handling the required load but are also optimized for energy efficiency and longevity. Here are five reasons why calculating the weight per meter of a conveyor belt is essential:
- Structural Integrity: The weight of the conveyor belt contributes to the overall load that the conveyor structure must support. Knowing this weight helps in designing a conveyor system that can withstand both the weight of the belt and the material it carries without risk of structural failure.
- Motor and Power Requirements: The weight of the belt affects the amount of power required to move it, especially when starting the conveyor from a stop. Accurate calculations ensure that the motor is not undersized or oversized, optimizing energy use and reducing wear and tear.
- Tension Calculations: Belt tension is a critical factor in ensuring smooth operation and preventing slippage or excessive wear. The weight per meter of the belt is a key variable in calculating the correct tension settings.
- Selection of Rollers and Supports: The rollers and support structures must be selected based on the weight they will need to support. This includes both the weight of the belt itself and the additional load of the conveyed material.
- Operational Efficiency: By understanding the conveyor belt’s weight, operations can be optimized for efficiency, reducing operational costs and increasing throughput without compromising safety or longevity.
FAQs About How to Calculate Tons per Hour on Conveyor Belt
Conveyor belt speed is typically calculated using the formula: Speed = Distance / Time. However, in the context of conveyor belts in industrial settings, the formula adapts to consider the dimensions and operational capacities of the belt itself. Specifically, conveyor belt speed (BS) is often determined based on the diameter of the drive pulley and the motor’s RPM (rotations per minute). The formula becomes: BS = π * D * RPM, where π is the constant (approximately 3.14159), D is the diameter of the pulley (in meters), and RPM is the rotations per minute of the pulley. This calculation is crucial for ensuring that the conveyor operates at the optimal speed for its intended application, balancing efficiency with the demands of material handling. Accurate speed calculations help in avoiding material spillage, underfeeding, or excessive wear on the conveyor components. Additionally, understanding conveyor belt speed is essential for scheduling maintenance, predicting throughput, and optimizing the entire material handling process.
Calculating the weight of a conveyor belt involves understanding its material composition, dimensions, and the density of the materials used to make it. The weight of the belt per unit length can be calculated using the formula: Weight per Meter = Belt Width (m) * Belt Thickness (m) * Material Density (kg/m³). This calculation provides the mass per unit length, giving engineers and operators an idea of the total weight the conveyor structure will need to support. This information is critical for designing the conveyor system’s structure, selecting appropriate motors, and ensuring that all components can handle the expected loads. It also plays a role in calculating the tension required to efficiently move the belt and the load it carries, which in turn affects the choice of belt material and the design of the conveyor’s drive system. Overall, understanding the weight of the conveyor belt is essential for ensuring the longevity, efficiency, and safety of the conveyor system.
PIW (Pounds per Inch of Width) is a measurement of the strength or carrying capacity of a conveyor belt. It represents the maximum weight that the belt can support over a specific width while operating without failure. To calculate PIW, you need the total breaking strength of the belt, which is usually provided by the manufacturer, and the width of the belt. The formula for calculating PIW is: PIW = Total Breaking Strength (lbs) / Belt Width (in). This calculation is vital for determining if a belt is suitable for the intended application, ensuring it can handle the load without excessive stretching, tearing, or breaking. Selecting a conveyor belt with an appropriate PIW rating is crucial for operational efficiency, safety, and the prevention of downtime. It also helps in choosing the right conveyor design, including the selection of pulleys, rollers, and other components, to match the belt’s capabilities.
Conveyor belt power is calculated to determine the energy required to move the belt and its load at a specific speed. The primary formula for calculating conveyor belt power (P) is: P = (Force * Distance) / Time, where the force is the total tension (T) in the belt, distance is the length of the belt, and time is the operation duration. However, in practical terms, the calculation is often simplified to: P = T * V, where T is the tension in Newtons, and V is the belt speed in meters per second. This formula incorporates the factors of belt tension and speed, which are critical for determining the motor’s required horsepower (HP). Calculating the correct conveyor belt power is essential for selecting a motor with adequate horsepower to efficiently and reliably move the conveyor belt and its load. This ensures the system operates smoothly, without overloading the motor or consuming unnecessary energy, contributing to operational efficiency and sustainability.
To calculate the load on a conveyor belt, you need to consider the weight of the material being transported and the dimensions of the load. Here’s a simplified process:
Determine Material Density: Obtain the density of the material in pounds per cubic foot (lb/ft³).
Measure Cross-Sectional Area: Measure the cross-sectional area of the material on the belt in square feet (ft²). This typically involves measuring the width and average height of the load.
Calculate Load: Use the formula:
Load (lb/ft)=Material Density (lb/ft³)×Cross-sectional Area (ft²)
Elongation in a conveyor belt is typically measured as a percentage of the belt’s original length. The formula to calculate elongation is:
Elongation (%)
=
(Stretched Length−Original Length)÷Original Length)×100
Stretched Length: Measure the length of the belt when it is under tension.
Original Length: Measure the original length of the belt without tension.
Calculate Elongation: Plug the values into the formula.
The speed of a chain conveyor can be calculated using the following steps:
Determine Chain Pitch: Measure the pitch of the chain (distance between the centers of two consecutive chain pins) in inches.
Count Sprocket Teeth: Count the number of teeth on the sprocket.
Measure Revolutions per Minute (RPM): Measure the rotational speed of the sprocket in revolutions per minute.
Calculate Linear Speed:
Speed (ft/min)
=(Chain Pitch (inches)×Number of Teeth×RPM12)
PIW is a unit of measurement that expresses the tensile strength of the conveyor belt per inch of belt width. It is measured in pounds per inch (lb/in).
To calculate the stretched length of a conveyor belt:
Original Length (L₀): Measure the original length of the belt without tension.
Elongation (%): Determine the percentage of elongation.
Calculate Stretched Length (Lₛ):
Stretched Length (Lₛ)=Original Length (L₀)×(1+Elongation (%)100)
By understanding these calculations, you can better design, maintain, and troubleshoot conveyor belt systems.
PIW is a unit of measurement that expresses the tensile strength of the conveyor belt per inch of belt width. It is measured in pounds per inch (lb/in).
Last Updated on August 5, 2024 by Jordan Smith
![Jordan Smith](https://www.gramconveyor.com/wp-content/uploads/2023/12/Jordan-Smith-100x100.jpg)
Jordan Smith, a seasoned professional with over 20 years of experience in the conveyor system industry. Jordan’s expertise lies in providing comprehensive solutions for conveyor rollers, belts, and accessories, catering to a wide range of industrial needs. From initial design and configuration to installation and meticulous troubleshooting, Jordan is adept at handling all aspects of conveyor system management. Whether you’re looking to upgrade your production line with efficient conveyor belts, require custom conveyor rollers for specific operations, or need expert advice on selecting the right conveyor accessories for your facility, Jordan is your reliable consultant. For any inquiries or assistance with conveyor system optimization, Jordan is available to share his wealth of knowledge and experience. Feel free to reach out at any time for professional guidance on all matters related to conveyor rollers, belts, and accessories.
