Choosing the Best Steel Idler Rollers for Conveyors

Steel idler rollers are essential components within conveyor systems, designed to support and guide the conveyor belt and the materials being transported. These rollers are crafted from steel, ensuring durability and the ability to withstand heavy loads and harsh operational environments. Conveyor rollers are cylindrical bars made of steel or aluminum, often coated with rubber, with idler rollers providing low rotating inertia and durability. The primary function of steel idler rollers is to provide a smooth, consistent surface for the conveyor belt to move over, reducing friction and wear on the belt itself. This not only enhances the efficiency of the conveyor system but also extends the lifespan of the conveyor belt. By maintaining the belt’s alignment and tension, steel idler rollers play a crucial role in the seamless operation of conveyor systems across various industries, from mining and agriculture to manufacturing and logistics.

What are Steel Idler Rollers？

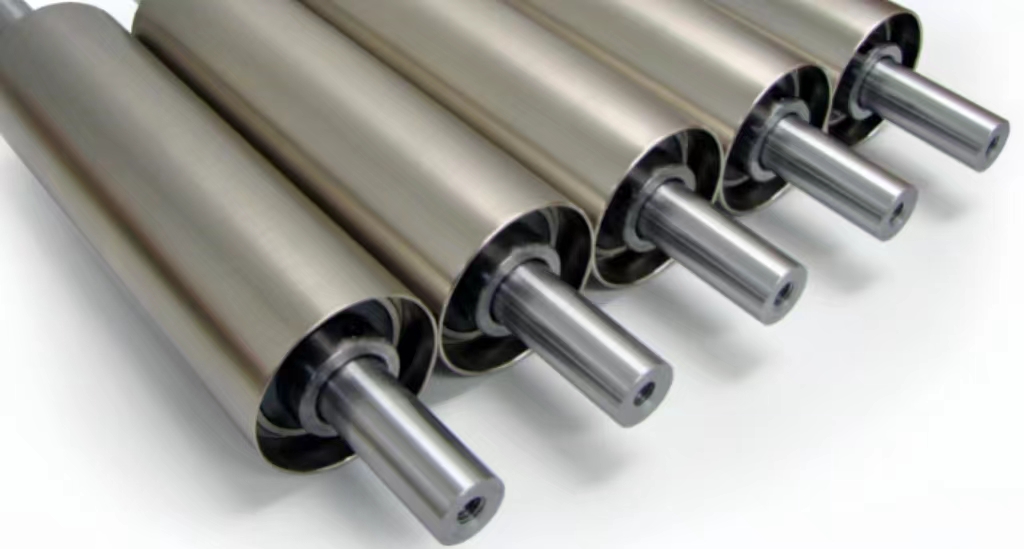

Definition and Primary Functions of Steel Idler Rollers

Steel idler rollers are critical components of conveyor systems, serving to support and guide the conveyor belt as it transports materials across various distances and elevations. These rollers are cylindrical-shaped bars made primarily of steel, selected for their robustness and durability. They are designed to handle substantial loads and withstand harsh operating conditions, making them essential for maintaining the efficiency and longevity of conveyor systems.

The primary function of steel idler rollers is to reduce the friction between the conveyor belt and its support structure. By rotating with minimal resistance, they help in maintaining the belt’s smooth movement, thereby enhancing the overall efficiency of the conveyor system. Additionally, steel idler rollers provide crucial support to the conveyor belt, ensuring it remains aligned and preventing it from sagging or drifting off course. This alignment is vital for preventing material spillage and ensuring safe and continuous operation.

Steel idler rollers are available in various configurations, including carrying idlers, return idlers, impact idlers, and training idlers, each designed for specific functions within the conveyor system. Carrying idlers support the loaded side of the belt, while return idlers support the empty belt on its return journey. Impact idlers, fitted with rubber disc return rollers, are positioned at loading points to absorb the impact of material falling onto the belt, thereby protecting both the belt and the rollers. Training idlers belt conveyor are used to keep the belt aligned, correcting any deviations in its path.

Applications in Various Industries

Steel idler rollers are widely used across numerous industries due to their versatility and reliability. Their applications span industries such as mining, construction, manufacturing, food processing, and logistics, each with specific demands that steel idler rollers can meet effectively.

Mining Industry

In the mining industry, steel idler rollers are indispensable. They are used in conveyor systems that transport raw materials like coal, ore, and minerals from extraction sites to processing facilities. The rugged conditions of mining operations, characterized by heavy loads, abrasive materials, and harsh environments, require rollers that are durable and capable of withstanding significant wear and tear. Steel idler rollers meet these demands, providing reliable performance and longevity, which are critical for minimizing downtime and maintaining productivity.

Construction Industry

In the construction industry, steel idler rollers are used in conveyor systems that transport building materials such as sand, gravel, and concrete. The ability of steel idler rollers to handle heavy loads and resist damage from abrasive materials makes them suitable for these applications. They ensure the smooth and efficient movement of materials across construction sites, facilitating continuous workflow and enhancing project efficiency.

Manufacturing Industry

Manufacturing plants utilize steel idler rollers in their conveyor systems to move products and components through various stages of production. These rollers are essential for ensuring the smooth flow of materials, which is crucial for maintaining production line efficiency. The durability of steel idler rollers makes them ideal for withstanding the continuous use and high-speed operations typical in manufacturing environments.

Food Processing Industry

In the food processing industry, hygiene and safety are paramount. Steel idler rollers, particularly those made of stainless steel roller, are used in conveyor systems to transport food products through processing and packaging lines. Stainless steel idler rollers are preferred for their resistance to corrosion and ease of cleaning, which are essential for maintaining sanitary conditions and complying with food safety regulations.

Logistics and Warehousing

Steel idler rollers are also integral to logistics and warehousing operations, where conveyor systems are used to move goods efficiently through sorting, packaging, and distribution processes. The robustness and reliability of steel idler rollers ensure that these systems operate smoothly, reducing handling time and improving overall logistics efficiency.

Importance of Steel Idler Rollers in Conveyor Systems

The role of steel idler rollers in conveyor systems cannot be overstated. These robust components are crucial for the efficient and smooth operation of conveyor belts, contributing significantly to the stability and longevity of the entire system. Here are eight key roles that steel idler rollers play:

1. Supporting the Conveyor Belt: Steel idler rollers provide critical support to the conveyor belt, ensuring it remains in a consistent position during operation. This support is essential for the smooth transportation of materials from one point to another.
2. Reducing Belt Wear: By offering a smooth surface for the conveyor belt to glide over, steel idler rollers minimize the friction and wear on the belt, thereby extending its service life.
3. Facilitating Material Transport: The rotation of steel idler rollers allows for the effortless movement of materials along the conveyor belt, enhancing the system’s overall efficiency.
4. Maintaining Belt Alignment: Properly aligned steel idler rollers ensure that the conveyor belt stays on its intended path, preventing costly belt misalignments and potential downtime.
5. Absorbing Operational Shocks: The robust nature of steel idler rollers enables them to absorb shocks and impacts from the materials being conveyed, which is particularly important in heavy-duty industrial applications.
6. Ensuring Operational Safety: By maintaining the conveyor belt’s stability and preventing slippage, steel idler rollers contribute to a safer working environment, reducing the risk of accidents.
7. Adapting to Various Environments: Steel idler rollers are designed to withstand harsh conditions, including extreme temperatures and corrosive environments, making them suitable for a wide range of industrial applications.
8. Enhancing System Longevity: The durability and reliability of steel idler rollers contribute to the overall longevity of conveyor systems, reducing the need for frequent replacements and maintenance.

Steel idler rollers are indispensable to the efficient operation of conveyor systems. Their contribution to the stability, safety, and longevity of these systems underscores their importance in industrial and manufacturing settings.

Types of Steel Idler Rollers

Steel idler rollers are integral to the functionality of conveyor systems, coming in various types to suit different applications and operational requirements. The two primary types of steel idler rollers are Dead Shaft Idler Rollers and Live Shaft Idler Rollers, each with its unique features and applications.

Feature	Dead Shaft Idler Rollers	Live Shaft Idler Rollers
Design	Feature a stationary shaft with the roller body rotating around it.	Consist of a shaft that rotates along with the roller body, providing movement.
Applications	Commonly used in applications where the roller needs to be fixed in place, such as in tensioning and guiding systems.	Suited for heavier loads and high-speed applications due to their robust design, making them ideal for bulk material handling.
Advantages	- Reduced friction and wear due to fewer moving parts. - Easier to maintain and replace as the shaft remains stationary. - Suitable for precise applications where roller stability is crucial.	- Can handle higher load capacities due to the support along the entire length of the roller. - More durable under heavy-duty operations. - Provides uniform distribution of load, enhancing belt life.
Differences	The key difference lies in the shaft design; the dead shaft remains stationary, allowing only the roller to rotate.	In live shaft rollers, both the shaft and the roller rotate together, offering a different dynamic in load handling and operational speed.

Understanding the distinctions between dead shaft and live shaft steel idler rollers is crucial for selecting the right type for your conveyor system, ensuring efficiency, longevity, and optimal performance.

Steel Idler Rollers Sizes

Overview of Common Sizes and Dimensions

Steel idler rollers come in a variety of sizes and dimensions, designed to meet the specific requirements of different conveyor systems. These sizes are typically categorized based on the diameter of the roller and the wall thickness of the conveyor roller material used to construct them. Understanding these dimensions is crucial for selecting the right roller for a particular application, ensuring optimal performance and longevity.

Common Diameters

1. Small Diameter Rollers

• 1.5 inches (38 mm): Used in light-duty applications where space constraints or lighter loads are prevalent. Common in small conveyor systems and applications with limited operational space.
• 2 inches (50 mm): Suitable for slightly heavier loads but still in the realm of light-duty operations. These rollers provide a balance between load capacity and space efficiency.

1. Medium Diameter Rollers

• 3 inches (75 mm): Frequently used in medium-duty applications. These rollers offer a good compromise between strength and weight, making them versatile for a range of conveyor systems.
• 4 inches (100 mm): Ideal for medium to heavy-duty applications. They provide increased load capacity and durability, making them suitable for more demanding environments.

1. Large Diameter Rollers

• 5 inches (125 mm): Designed for heavy-duty applications where significant loads are transported. These rollers are robust and durable, capable of withstanding the rigors of intensive operations.
• 6 inches (150 mm): Used in the heaviest-duty applications, such as mining and large-scale manufacturing. These rollers are built to support extremely high loads and resist substantial wear and tear.

Wall Thickness

The wall thickness of steel idler rollers is another critical dimension that influences their strength and durability. Common wall thicknesses include:

• 0.25 inches (6 mm): Suitable for light to medium-duty applications. These rollers are lighter and easier to handle, yet strong enough for many standard operations.
• 0.5 inches (12 mm): Used in medium to heavy-duty applications. This thickness provides added durability and load-bearing capacity.
• 0.75 inches (19 mm): Designed for heavy-duty applications where high strength and resistance to impact are required. These rollers are built to last in the most demanding environments.

Importance of Selecting the Right Size for Specific Applications

Choosing the correct size of steel idler rollers is crucial for the efficiency and longevity of a conveyor system. The right size ensures that the roller can handle the load without excessive wear or risk of failure. Here are some key considerations when selecting the appropriate size:

Load Capacity

The diameter and wall thickness of steel idler rollers directly impact their load-bearing capacity. Larger diameters and thicker walls can support heavier loads, making them suitable for applications where large quantities of materials are transported. For example, in the mining industry, where conveyor systems handle tons of ore and minerals, using rollers with a larger diameter and thicker wall is essential to prevent breakdowns and maintain operational efficiency.

Space Constraints

In environments with limited space, smaller diameter rollers might be necessary. These rollers can fit into tighter spaces and are easier to install and maintain. However, it’s important to balance space constraints with the need for adequate load capacity, ensuring that the rollers can still support the required weight without excessive wear.

Durability and Maintenance

The operational environment also plays a significant role in determining the appropriate conveyor roller size. In harsh environments, such as those with high levels of dust, moisture, or extreme temperatures, selecting rollers with a larger diameter and thicker walls can provide added durability and reduce the frequency of maintenance. These rollers are better equipped to handle the environmental stresses and maintain their performance over time.

Application Specificity

Different applications may require specific roller sizes to optimize performance. For instance, in high-speed conveyor systems, smaller diameter rollers with adequate wall thickness might be preferred to reduce rotational inertia and improve efficiency. Conversely, for slower, heavy-duty systems, larger diameter rollers with thicker walls are more suitable to provide the necessary support and longevity.

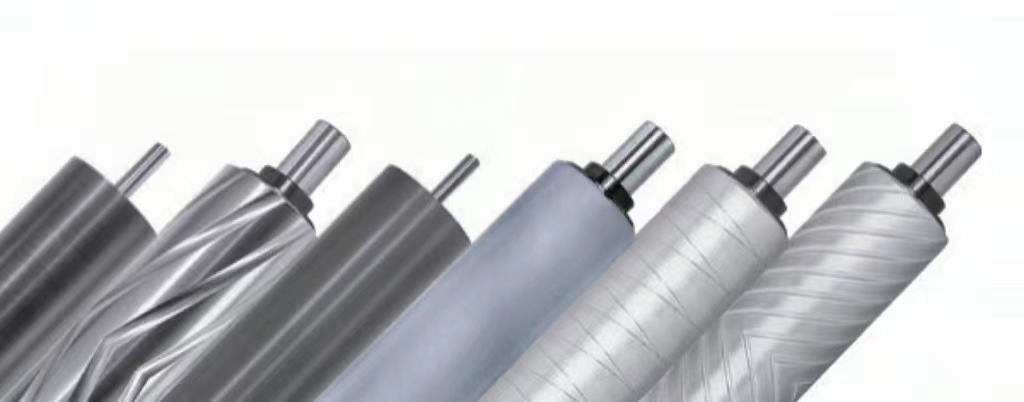

Key Considerations in Selecting Steel Idler Rollers

When it comes to integrating steel idler rollers into conveyor systems, selecting the right type is crucial for ensuring operational efficiency and longevity. Here are ten key factors to consider when choosing steel idler rollers for specific applications:

1. Size and Dimensions: The size of the steel idler rollers, including length and diameter, should match the width and speed of the conveyor belt to ensure proper support and functionality.
2. Load Capacity: Consider the maximum load the rollers need to support. Steel idler rollers should be selected based on their ability to handle the anticipated weight without deformation or failure.
3. Operational Environment: The environment in which the rollers will operate can greatly influence the choice. Factors such as temperature, humidity, and exposure to chemicals or corrosive substances need to be considered.
4. Belt Speed: The speed at which the conveyor belt operates can affect the type of idler rollers needed. High-speed applications may require rollers designed to minimize friction and heat buildup.
5. Material Type: The type of materials being conveyed (e.g., abrasive, corrosive, sticky) can impact the choice of steel idler rollers, as some materials may require rollers with special coatings or treatments.
6. Troughing Angle: The angle of the idler rollers (in roller troughed belt conveyors) needs to be suitable for the type of material being transported to ensure proper containment and minimal spillage.
7. Bearing Type: The type of bearings used in the rollers affects their load capacity, operational speed, and maintenance requirements. Select bearings that match the application’s demands.
8. Sealing System: A good conveyor sealing system is essential for protecting the bearings from dust, water, and other contaminants. The choice of seal should correspond to the environmental conditions.
9. Maintenance Requirements: Consider the ease of maintenance and the availability of replacement parts. Rollers that are easy to service and maintain can reduce downtime and operational costs.
10. Manufacturer Reputation and Support: Finally, choose a reputable manufacturer known for quality steel idler rollers and who offers good customer support. This ensures reliability and access to assistance when needed.

By carefully considering these factors, you can select steel idler rollers that are well-suited to your specific application, contributing to the efficiency and durability of your conveyor system.

Steel Idler Rollers in Various Applications

Steel idler rollers are integral components in a wide range of industrial applications, providing support, guiding, and tensioning to conveyor belts and systems. Their durability, resistance to wear, and ability to withstand heavy loads make them indispensable in various sectors. This article explores the critical roles of steel idler rollers in industrial manufacturing, the automotive industry, and excavation and construction projects.

Industrial Manufacturing

In the realm of industrial manufacturing, steel idler rollers play a pivotal role in the seamless operation of conveyor systems. These rollers are crucial for moving materials and products through production lines with efficiency and precision. Whether it’s in food processing plants, packaging facilities, or metal fabrication workshops, steel idler rollers ensure that conveyor belts run smoothly, minimizing downtime and enhancing productivity. Their robust construction allows them to handle the rigorous demands of continuous operation, including exposure to extreme temperatures, corrosive substances, and varying loads. By reducing friction and wear on the conveyor belt, these rollers extend the life of the entire system, leading to significant cost savings and operational efficiencies.

Automotive Industry

In the automotive industry, steel idler rollers find applications both in manufacturing processes and in end-use products. Car mechanic simulators, used for training and educational purposes, often incorporate these rollers to mimic the movement and mechanics of actual automotive parts. This hands-on approach helps students and professionals understand the intricacies of vehicle operation and maintenance. Beyond simulators, real-world automotive applications of steel idler rollers include their use in the assembly lines where vehicles are built. Here, they facilitate the smooth transportation of car parts and assemblies, ensuring that components are moved to the right place at the right time. Additionally, idler rollers are used in the tensioning systems of timing belts and chains in engines, playing a critical role in maintaining the synchronization of engine components and ensuring efficient operation.

Excavation and Construction

The excavation and construction sectors heavily rely on heavy machinery such as excavators, bulldozers, and cranes, many of which utilize steel idler rollers in their undercarriage systems. These rollers are essential for the movement and operation of such equipment, providing stability and support while navigating rough and uneven terrain. The high load-bearing capacity and resistance to deformation make steel idler rollers ideal for these applications, where durability and reliability are paramount. They help in distributing the weight of the machinery evenly, reducing ground pressure and enhancing mobility. Furthermore, in conveyor systems used for transporting materials like dirt, rocks, and debris, steel idler rollers ensure the efficient and continuous flow of materials, contributing to the timely completion of construction and excavation projects.

Steel idler rollers are versatile components that play critical roles across various industries. Their application in industrial manufacturing, the automotive sector, and excavation and construction underscores their importance in modern engineering and technology. By facilitating the movement and support of materials and machinery, steel idler rollers contribute significantly to the efficiency and success of these industries.

Choosing the Right Steel Idler Roller Manufacturer

Selecting the right manufacturer for steel idler rollers is crucial for ensuring the efficiency, reliability, and longevity of your conveyor systems. The market is filled with numerous suppliers, each promising the best in terms of quality and service. However, to truly find a manufacturer that meets your specific needs, it’s important to consider several key factors. Here are 10 tips to guide you in choosing the right steel idler roller manufacturer, focusing on quality, customization options, customer service, and the variety of products offered.

1. Quality Assurance: Look for manufacturers that adhere to international quality standards for steel idler rollers. Certifications such as ISO can be a good indicator of a company’s commitment to quality.
2. Customization Options: Every application has unique requirements. The best manufacturers offer customization options for their steel idler rollers, allowing you to specify dimensions, materials, and features tailored to your needs.
3. Comprehensive Product Range: Choose a manufacturer that offers a wide range of sizes and types of steel idler rollers. A diverse product line ensures that you can find the perfect match for various applications, from light-duty to heavy-duty conveyor systems.
4. Technical Expertise: The manufacturer’s technical expertise is crucial. They should have a deep understanding of different industries and applications to provide valuable insights and recommendations.
5. Customer Service Excellence: Prioritize manufacturers known for their exceptional customer service. Responsive and knowledgeable support can significantly impact the success of your projects.
6. Proven Track Record: Look for manufacturers with a proven track record of delivering high-quality steel idler rollers. Testimonials, case studies, and reviews can provide insights into their reliability and performance.
7. Innovative Solutions: The ability to innovate is crucial in keeping up with evolving demands. Manufacturers that invest in research and development can offer more advanced and efficient solutions.
8. Competitive Pricing: While quality should never be compromised for cost, competitive pricing is important. Evaluate the value offered by the manufacturer, considering both the price and the quality of their steel idler rollers.
9. After-Sales Support: After-sales support, including warranty policies and maintenance services, is crucial. A reliable manufacturer stands behind their products and offers support throughout the product’s lifecycle.
10. Sustainability Practices: In today’s world, environmental responsibility is increasingly important. Consider manufacturers that adopt sustainable practices in their production processes, contributing to a greener planet.

Choosing the right manufacturer for steel idler rollers is more than just finding a supplier. It’s about establishing a partnership with a company that understands your needs, offers high-quality and customizable solutions, and provides exceptional customer service. By considering the factors mentioned above, you can ensure that your conveyor systems operate efficiently, reliably, and cost-effectively, supporting the success of your operations.

Maintenance and Care for Steel Idler Rollers

Proper maintenance and care are essential for maximizing the lifespan and efficiency of steel idler rollers in conveyor systems. Regular upkeep not only extends the operational life of these components but also ensures their optimal performance, contributing to the overall productivity of the conveyor system. Here are 10 basic maintenance tips to help you maintain your steel idler rollers effectively:

1. Regular Inspections: Conduct regular inspections of steel idler rollers to identify any signs of wear, damage, or misalignment. Early detection of issues can prevent more serious problems and costly downtime.
2. Cleanliness: Keep the rollers and the surrounding area clean. Accumulation of debris, dust, or material spillage on the rollers can lead to increased wear and tear, and potentially cause the conveyor belt to misalign.
3. Lubrication: Ensure that the bearings in the idler rollers are properly lubricated according to the manufacturer’s recommendations. Adequate lubrication reduces friction, prevents overheating, and extends the life of the rollers.
4. Alignment Checks: Regularly check the alignment of the steel idler rollers. Misaligned rollers can cause uneven wear on the conveyor belt, leading to premature belt failure.
5. Bearing Temperature Monitoring: Monitor the temperature of the roller bearings. An increase in temperature can be an early indicator of overloading or insufficient lubrication.
6. Load Capacity Adherence: Do not exceed the recommended load capacity for the steel idler rollers. Overloading can cause excessive wear, deformation, and ultimately, failure of the rollers.
7. Replacement of Worn Parts: Replace any rollers that show significant wear or damage. Using worn or damaged rollers can adversely affect the conveyor belt and the efficiency of the conveyor system.
8. Proper Storage: If storing spare steel idler rollers, keep them in a clean, dry place away from extreme temperatures and direct sunlight. Proper storage conditions prevent corrosion and damage to the rollers.
9. Use of Correct Tools: When performing maintenance or replacement, use the correct tools and follow the manufacturer’s guidelines. This ensures that the rollers are not damaged during the process and are installed correctly.
10. Training for Maintenance Staff: Ensure that the maintenance staff is properly trained in the care and maintenance of steel idler rollers. Knowledgeable personnel can more effectively identify and address issues, reducing the risk of costly errors.

Secure your conveyor rollers with our expert help now.

By following these maintenance tips, you can significantly extend the life of your steel idler rollers and maintain the efficiency and reliability of your conveyor system. Regular and proper maintenance not only saves money in the long run by reducing the need for replacements and repairs but also ensures that your conveyor system operates smoothly, supporting uninterrupted production processes.

FAQs about Steel Idler Rollers
